P-227: 5-Stage Powder Coating System

Powder and Liquid Coating Systems

RSI, Inc. designs, manufactures, installs and relocates the finest turnkey finishing systems, including powder coating systems. Equipped with competent and efficient engineers and trained technical supervisors, no job is too great. RSI will work with you to determine the finishing system that best fits your needs considering product dimensions, line speeds, floor space and weight. RSI is proud to have the largest owned inventory and has the capability to meet your budget as we offer new, reconditioned and used systems. Contact us with any questions.

P-226: 5-Stage Powder Coating System

Koch/Wagner Powder Coat System

Part Opening:                          2’-6” W x 6’-0” H
Maximum Product:                   1’-6” W x 5’-0” H x 6’ L
Design Line Speed                    4-6 FPM (Can be increased)
Excellent Condition

Click Here for PDF

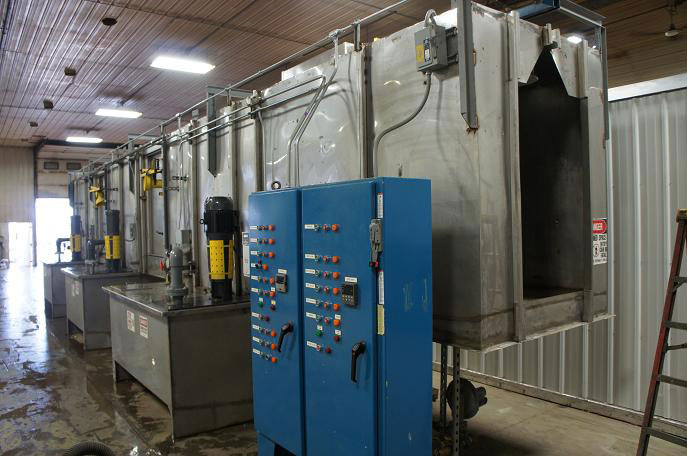

* 5-Stage Stainless Steel Washer (Can be increased to 5-Stage)
            - Stage 1 & 3 Heated
            - Gusher Pumps
            - Maxon Burners
* 7-Minute Dry-Off Oven
* 20-Minute Cure Oven
* Maxon Burners & Honeywell Controls
* Webb/Unibilt Conveyor System (I-beam Systems available)
* System Controls
* Complete System Prints
* Nordson Spray to Waste Powder Booth
            - Booth Substitution Options Available
* System Warranty
* Quick Delivery
* Installation and Additional Options Available
* Location: Berlin, WI

Click Here for PDF

Manufacturer:                           SBS / Nordson
Part Opening:                           3’-6” W x 7’-0” H
Maximum Product:                  3’-0” W x 6’-0” H x 8’ L
Design Line Speed:                 10 FPM (Can be increased)
Condition:                                   Excellent

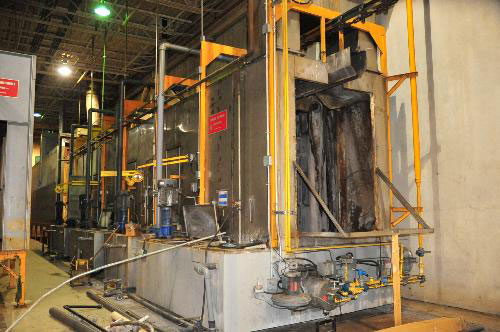

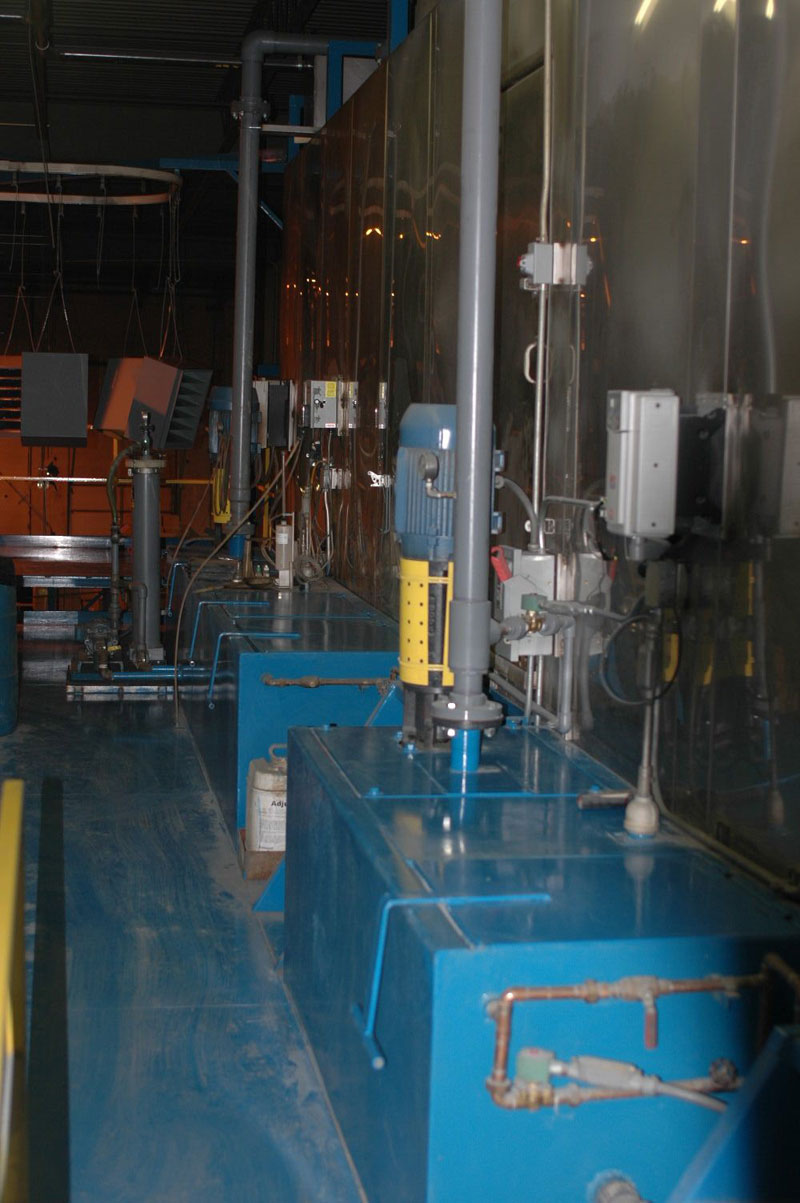

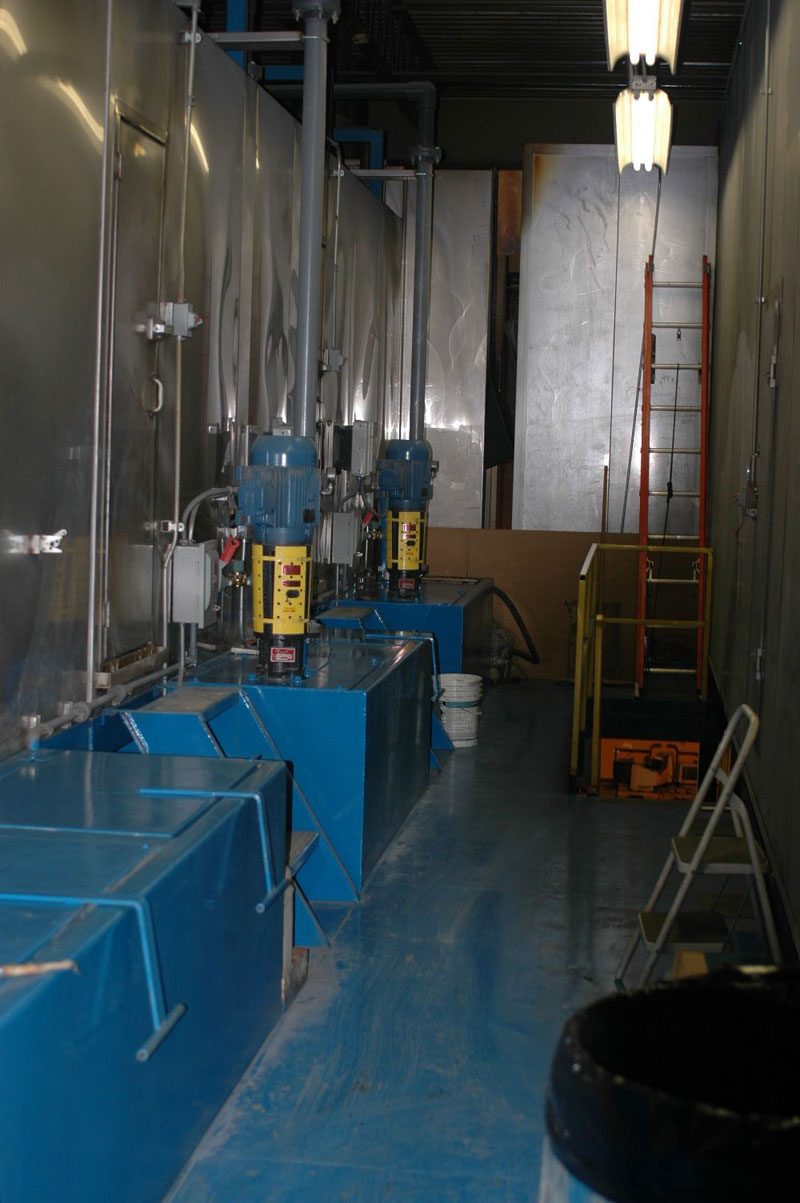

5 – Stage Stainless Steel Washer

90’ Total Length, 8’ Drains
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Gusher Pumps Vertical Mount Pumps
Maxon Burners on Stages 1 (3.5 mil) & 3 (2.5 mil)
Like New Condition

Dry-Off & Cure Oven

8-Minute Dry-Off Oven
20-Minute Cure Oven
6” Oven Panels
(2) Burner Boxes with Eclipse Burners and Gas Trains
Graphalloy Oven Wheel Turns
New Flashing & Strip Insulation
Air Seals

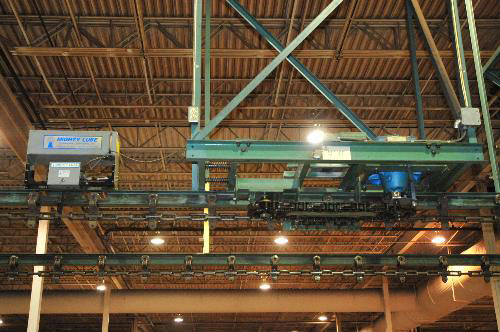

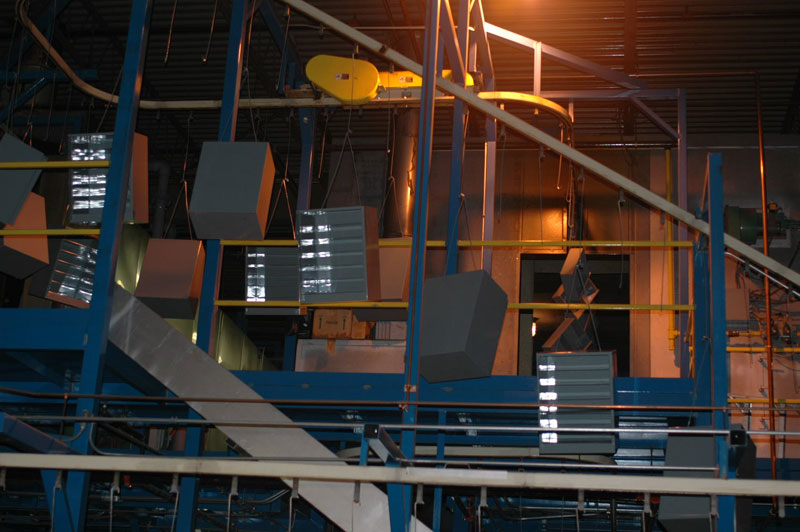

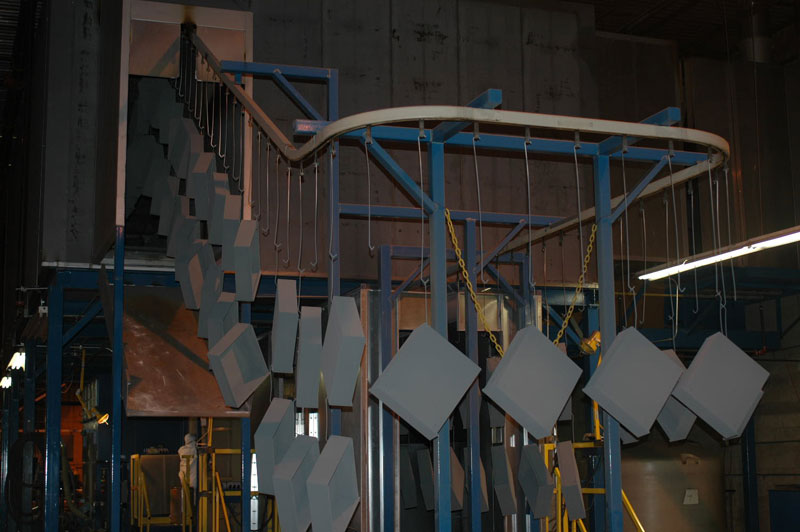

Conveyor System

X458, 4” I-Beam
Full Ball Open/Open Chain spaced 24” On-Center
Variable Speed Drive & Control
Oiler
Conveyor Chain, Turns, Track and Structure Supplied per Design

(2) Wagner Reclaim Powder Booths (items per booth)

Side-Draft Design
Manual and Automatic Application
(1) Booth Base & Fan Package – 10,000 cfm
(1) Stainless Steel Upper Housing
(1) Collector Module
(1) 150 lb Color Hopper with Azo Sieve
(16) Onada Automatic Guns with Controls
(2) Onada Manual Guns with Controls
(2) Manual Operator Platforms
(2) Reciprocators
Part Detection with Automatic Triggering
Fire Detection System
System Controls
Additional booths and color modules available

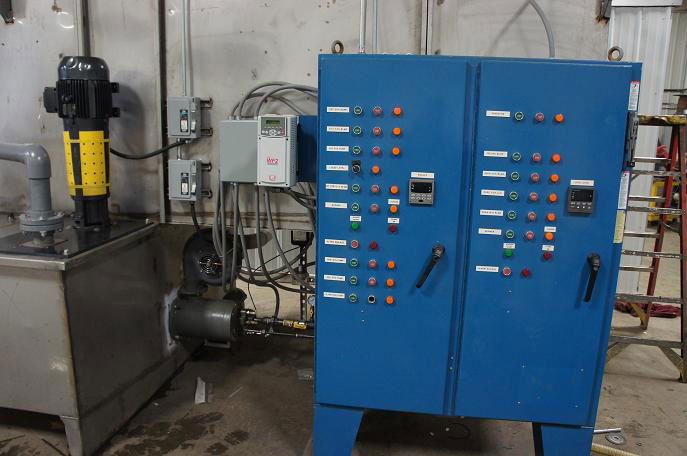

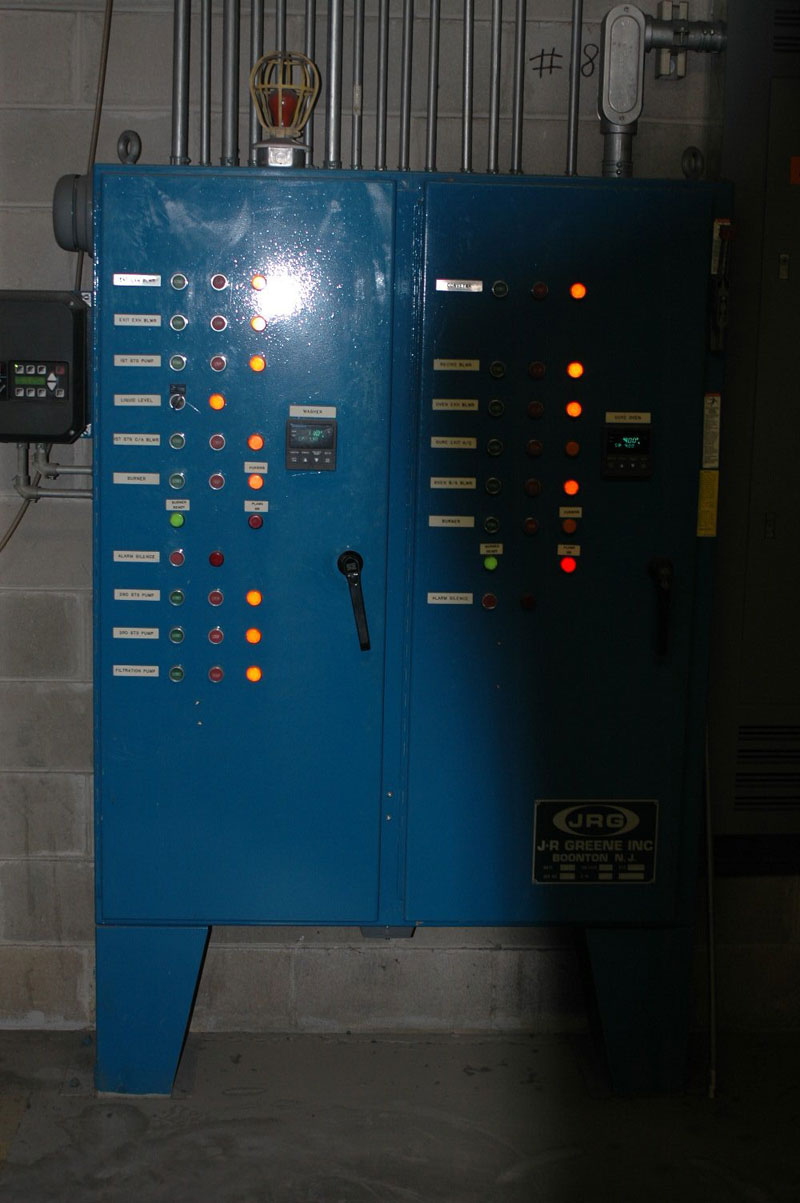

System Control Panel

Allen Bradley & Honeywell Control
System Prints

System will be provided as a reconditioned system with warranty. Installation and additional options are available.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

WASHER SPECIFICATIONS

Stage	Length	Time	Temp	Tank	Pump	GPM	Risers	Noz./Ed.
S1: Alkaline Clean	15	90 s	<160°	2,300	25	768	16 sets	256 N
S2: Rinse	5’	30 s	Amb.	900	7.5	288	6 sets	96 N
S3: Iron Phosphate	10’	60 s	<140°	1,600	15	528	11 sets	176 N
S4: Rinse	5’	30 s	Amb.	900	7.5	288	6 sets	96 N
S5: Rinse/Seal	5’	30 s	Amb.	900	7.5	288	6 sets	96 N

P-225: 3-Stage Powder Coating System

Manufacturer:                           Infratrol / Nordson
Part Opening:                          4’-0” W x 5’-0” H
Maximum Product:                 3’-0” W x 4’-0” H x 6’ L
Design Line Speed:                4-6 FPM (Can be increased)
Condition:                                 Refurbished System per Customer’s Specification

3 – Stage Stainless Steel Washer

Gusher Pumps or equivalent Vertical Mount Pumps
Power Flame Burners on Stages 1 & 3 (makes for easy upgrade to 5-stage system)
New Risers & Spray Nozzles

Combination Dry-Off/Cure Oven

8-Minute Dry-Off Oven
20-Minute Cure Oven
4” and 6” Oven Panels
Eclipse Burner with Gas Trane
Graphalloy Oven Wheel Turns
New Flashing & Strip Insulation

Conveyor System

X458, 4” I-Beam
Full Ball Open/Open Chain spaced 24” On-Center
Variable Speed Drive & Control
Oiler
Conveyor Chain, Turns, Track and Structure Supplied per Design

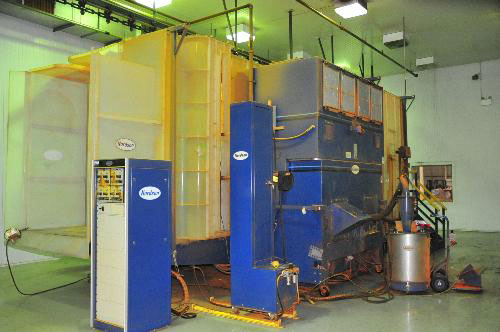

Nordson NCH-8 Reclaim Powder Booth (2 available)

Down-Draft Design
Manual and Automatic Application
(1) Booth Base & Fan Package – 6000 cfm
(1) Poly Upper Housing
(1) Collector Module with New Filters
(1) 200 lb Color Hopper with 12 Pumps & Pick-up Tubes
(10) Nordson Versa Spray Automatic Guns with Controls
(2) Nordson Versa Spray Manual Guns with Controls
(2) Manual Operator Platforms
(2) Automatic Gun Stands
Fire Detection System
System Controls

System Control Panel

Allen Bradley & Honeywell Control
System Prints

System will be provided as a reconditioned system with warranty. The system will be re-engineered, designed, and upgraded for the customer’s specific needs. Installation and additional options are available.

WASHER SPECIFICATIONS

*Stage*	*Length*	*Operation Temperature*	*Time at 4 FPM*	*Sets of risers per side*	*Nozzle per Stage*
Entrance	5’
Stage 1 (Clean)	6’	120-140 F	90	7	105
Drain	6’
Stage 2 (Rinse)	2’	Ambient	30	3	45
Drain	6’
Stage 3 (Seal)	2’	120-140 F	30	3	45
Exit	5’
Total Length	*32’*

*Stage*	*Pump GPM*	*Tank Capacity*	*Nozzle GPM*	*Pump TDH*	*Pump HP*	*Gross BTU/hr*
Stage 1 (Clean)	315	1,500	3.0	60	15	2,500,000
Stage 2 (Rinse)	135	750	3.0	60	5
Stage 3 (Seal)	135	1,350	3.0	60	5	1,500,000

Manufacturer: Koch Powder Coat System

Part Opening:                          2’-6” W x 6’-0” H
Maximum Product:                  1’-6” W x 5’-0” H x 6’ L
Design Line Speed                4-6 FPM (Can be increased)
Excellent Condition

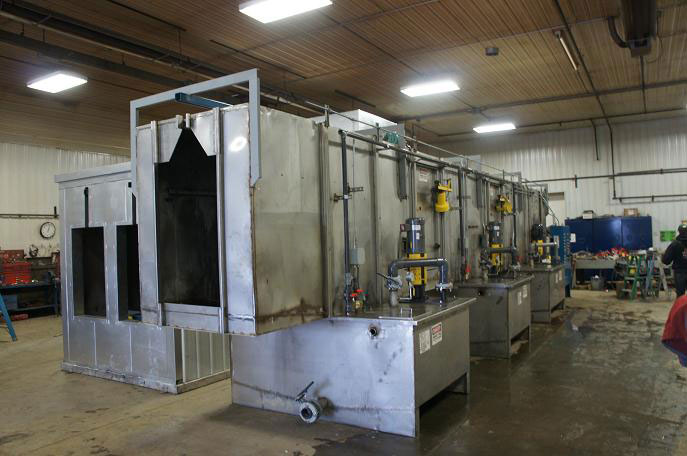

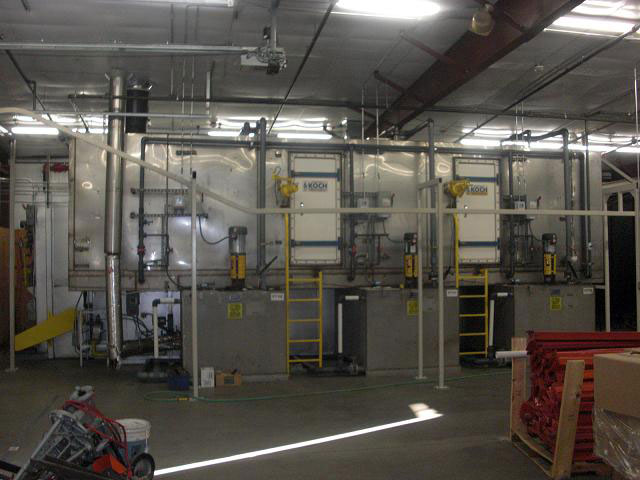

* 3-Stage Stainless Steel Washer (Can be increased to 5-Stage)
            - Stage 1 Heated
            - Gusher Pumps
* 7-Minute Dry-Off Oven
* 20-Minute Cure Oven
* Webb/Unibilt Conveyor System
* Maxon Burners & Honeywell Controls
* System Controls
* Complete System Prints
* Wagner Reclaim Automatic Powder Booth
            - (8) Onada Automatic / (2) Manual Powder Guns
            - (2) Wagner Reciprocators
            - Fire Detection System
            - Part Detection System
            - Booth Substitution Options Available
* System Warranty
* Quick Delivery
* Installation and Additional Options Available
* Location: Berlin, WI

P-224: 3-Stage Powder Coating System

P-223: 5-Stage Powder Coating System

Manufacturer: Advance Curing Systems/Nordson Powder Coat System

Part Opening:                       5 ft’ w x 7’ ft High
Maximum Part Length:        8 ft
Design Line Speed             4-6 FPM (Can be increased)
Excellent Condition

* 5-Stage Stainless Steel Washer
* 8-Minute Dry-Off Oven
* 5.5 Minute Dry-Off Oven Forced Cooling Tunnel
* 20-Minute Cure Oven
* 9-Minute Cure Oven Forced Cooling Tunnel
* Environmental Room with HVAC, 100’ L x 33’W x 18’ H
* (2) Nordson Ex

P-217: 3-Stage Powder Coating System

cel 2002 Manual/Automatic Powder Booths
* X458, 4” I-Beam Conveyor System
* Maxon Burners & Honeywell Controls
* System Controls

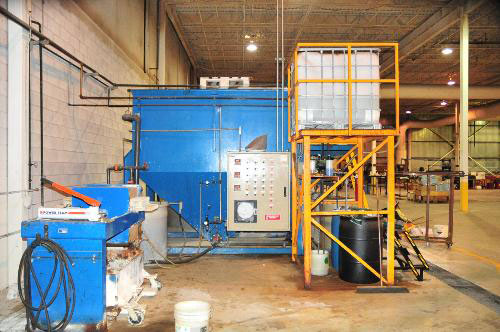

* Waste Treatment System is available
* Loaded on Truck

* Installation & Re-design engineering available

Refurbished/New Powder System
1-Year Warranty
Installation and additional equipment options available
System Layout & Installation Prints Provided Per Customer Spec
Opening: 2’6” wide x 4’-0” high (can be modified)
Line Speed: 6 fpm
Please inquire about additional washer stages & powder booths

3-Stage Stainless Steel Washer

All Stainless Steel Construction
Reconditioned Pumps
New Maxon Burner & Gas Train
35’ L x 10’ H x 7’-6” W

Zone           Length     Time            Temp
Entrance:          5’
Stage 1:            6’          60 sec        100-140 deg
Drain:                6’
Stage 2:            3’           30 sec        Ambient
Drain:               6’
Stage 3:            3’           30 sec        Ambient
Exit:                  6’

7-Minute Dry-Off Oven

New 4” Oven Wall Panels
New Flashing & Duct Work
New Strip Insulation
Reconditioned Burner Box with Maxon/Eclipse Burner & Gas Train

20-Minute Cure Oven

New 6” Oven Wall Panels
New Flashing & Duct Work
New Strip Insulation
Reconditioned Burner Box with Maxon/Eclipse Burner & Gas Train

X458, 4” I-Beam Conveyor System

500’ Length, 450 lb Capacity per hook
Reconditioned System
Heavy Duty Full Ball Conveyor Chain
Variable Speed Control

System Controls

Allen Bradley/Honeywell Controls
Pushbutton Control
Complete System Prints

Installation and additional equipment options to include powder booths, guns, additional washer stages, environmental rooms, etc are available.

P-216: 3-Stage Powder Coating System

Mfg: Advanced Curing Systems
Very Nice Condition Refurbished and upgraded
Opening: 3’4” wide x 6’4” high (can be modified)
Line Speed: 6 fpm

3-Stage Stainless Steel Washer

All Stainless Steel Construction
Kerr Pumps
Maxon Burner

Zone           Length     Time           Temp
Entrance:          6’
Stage 1:            6’          60 sec        100-140 deg
Drain:                8’
Stage 2:            3’           30 sec        Ambient
Drain:                8’
Stage 3:            3’           30 sec        Ambient
Exit:                    8’
