Filters more than 99% of airborne contaminant particles
Cross draft airflow creates a wicking process that improves dry times without dirt transfer
Power 30 amp 220 V single phase power
Two 1.5 horsepower motors
Two airspeeds one for painting process and a second of drying process
Mobile Retractable and moveable
Ventilation Vent to outside
100% evacuation of VOCs
Dimensions Filtration Unit 70 x 80 x 50 in.

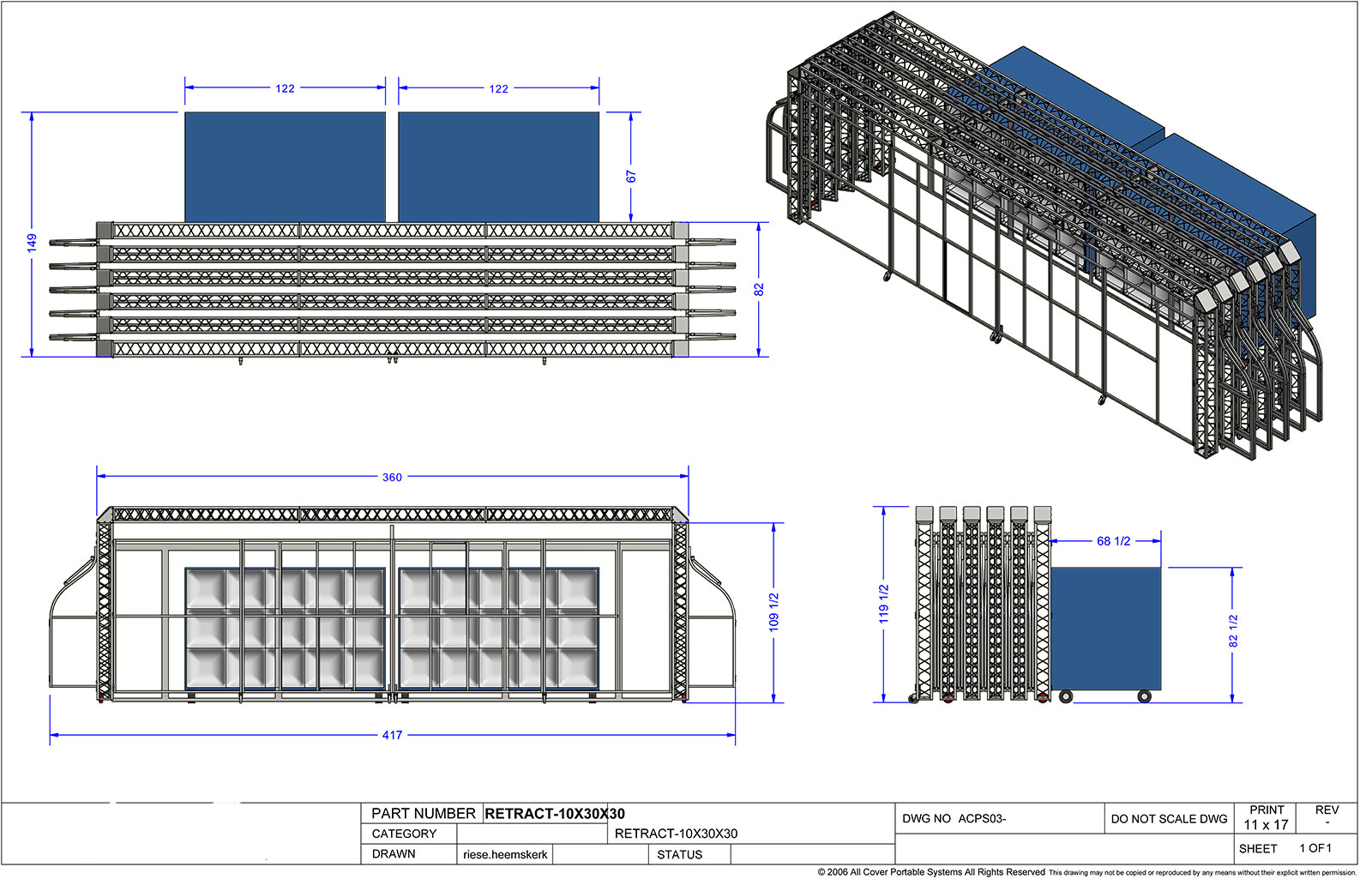

Enclosure Extended 24 x 14 x 9 ft.
Enclosure Retracted 4 x 14 x 9 ft.
Optional* Duroair Fire Suppression and Exterior Lighting
* In order to be compliant with NFPA regulations fire suppression is mandatory.
