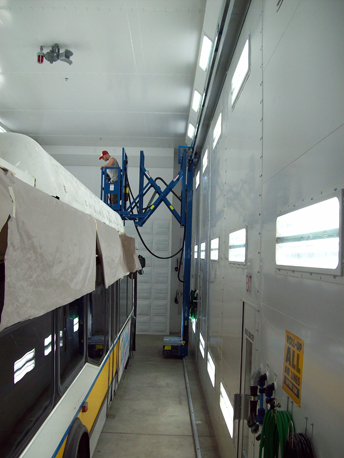

- The Custom Aire TRUCK SIDE DOWNFLO
spray booth provides a complete painting facility for trucks based on
the same engineering principles as our SIDE DOWNFLO AUTO BOOTH.
Filtered air is introduced evenly over the ceiling of the booth and is
drawn smoothly down the sides of the truck and through the sides of the
booth near the floor. The over-spray is trapped in the exhaust arrestors
located in the floor and the remaining air and vapors are exhausted into
the atmosphere.
The booth utilizes the existing floor of the building without any
modification. Constructed of 18GA galvanized steel, the booth is easily
assembled by following RSI supplied instructions
and blueprints.
The Custom Aire TRUCK SIDE
DOWNFLO spray booth comes in two standard models (TSDD or Truck
Side DownFlo and TSDD/DT or Truck Side DownFlo Drive-thru) and is also
available in custom sizes to fit specialized needs. Consult
RSI
for further information and pricing.
STANDARD MODEL:
TSDD4424
DRIVE-THRU MODEL: TSDD/DT4424
DIMENSIONS FOR ALL MODELS:
-
Inside: 16'0"wide x 16'0"high
x 44'0"long
-
Outside: 18'4"wide x 18'2"high
x 44'4"long
-
Door: 11'0"wide x 14'0"high
FEATURES INCLUDE:
-
4 - 24" diameter
tube-axial fan with variable pitch, non-sparking blades
-
4 - 2HP open type motor
for operation on 208/230/460 VAC, 60Hz, 1 or 3 phase
-
One complete set of
Laminar III air supply filters and one set of exhaust
arrestors
-
Fluorescent light fixtures
with clear tempered glass with tubes
-
3'0" x 7'0" personnel
access door with observation window
-
24 feet of exhaust stack,
2 roof jacks, and 2 upflow caps
-
Door limit switches and
air valve
-
Painter's work station
-
Manometer to monitor
porosity of arrestors
-
Installation hardware,
caulking, and door gaskets
-
Blueprints and assembly
instructions
- The Custom Aire DOUBLE ROW DOWNFLO
TRUCK spray booth provides a complete painting facility for
trucks based on the same engineering principles as our DOWNFLO
AUTO BOOTH. Filtered air is introduced evenly over the ceiling
of the booth and is drawn smoothly down the sides of the truck and
through the grating that makes up most of the floor of the booth. The
over-spray is trapped in the exhaust arrestors located in the floor and
the remaining air and vapors are exhausted into the atmosphere.

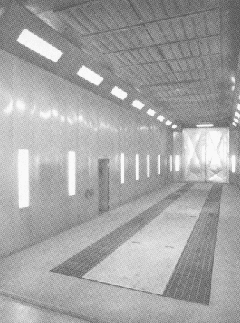

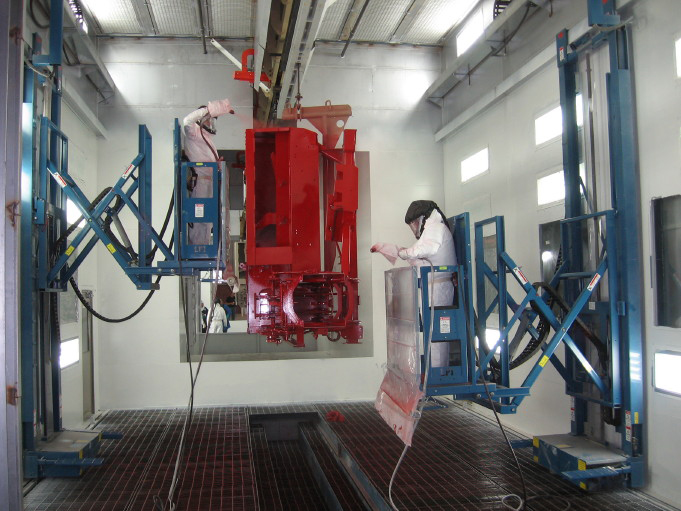

The pit is designed to provide maximum air flow in the booth and is
covered with two rows of grating, one on each side of the vehicle.
Constructed of 18GA galvanized steel, the booth is easily assembled by
following RSI supplied instructions and
blueprints.
The Custom Aire DOUBLE ROW DOWNFLO
TRUCK spray booth comes in two standard models (TDF or Truck
DownFlo and TDF/DT or Truck DownFlo Drive-thru) and is also available in
custom sizes to fit specialized needs. Consult
RSI
for further information and pricing.
STANDARD MODEL: TDF4426
DRIVE-THRU MODEL: TDF/DT4426
DIMENSIONS FOR ALL MODELS:
- Inside: 16'0"wide x 16'0"high x 44'0"long
- Outside: 17'4"wide x 18'2"high x 44'4"long
- Door: 11'0"wide x 14'0"high
FEATURES INCLUDE:
- 2 - 24" diameter tube-axial fan with
variable pitch, non-sparking blades
- 2 - 3HP open type motor for operation
on 208/230/460 VAC, 60Hz, 1 or 3 phase
- One complete set of Laminar III
air supply filters and one set of exhaust arrestors
- Fluorescent light fixtures with clear
tempered glass with tubes
- 3'0" x 7'0" personnel access door with
observation window
- 12 feet of exhaust stack, 2 roof
jacks, and 2 upflow caps
- Door limit switches and air valve
- Painter's work station
- Manometer to monitor porosity of
arrestors
- Installation hardware, caulking, and
door gaskets
- Blueprints and assembly instructions
|
|
