The Custom Aire
DELUXE CROSSFLO spray booth has been designed by RSI
to meet the need for a quality booth which will provide the best possible
trade-offs in price and performance. The Custom Aire DELUXE CROSSFLO
booth does not require a pit or basement which results in a more economical
installation. In addition, there are no side exhaust ducts, which gives a
large work area inside the booth without excessive loss of floor space
around the spray booth.
The Custom Aire
DELUXE CROSSFLO spray booth introduces fresh filtered air evenly
across one end of the booth. The air flows smoothly along the sides of the
vehicle and then is drawn away toward the opposite end of the booth. It then
passes through the exhaust arrestors where the overspray is trapped and the
air exhausted and dispersed.
The Custom Aire
DELUXE CROSSFLO spray booth is available in three configurations.
The standard configuration (ASA or Standard Airflow) has the intake filters
located in the doors and the exhaust arrestors at the rear of the booth. The

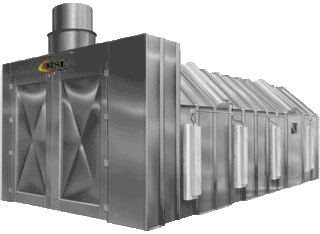

reversed configuration (ARA or Reversed Airflow) shown here has the intake
filters at the rear of the booth and the exhaust arrestors to the sides of
the drive-in doors. The drive-thru configuration (ASD or Drive-thru) has the
exhaust arrestors to the sides of the solid doors on one end and the intake
filters in the doors at the other end.
For increased
thru-put and also for use with newer spray paints and coatings, the Custom
Aire DELUXE CROSSFLO spray booth is designed to be used
with the RSI AMS1000
heat system. These systems have proven
track records for reliability and efficiency on RSI
booths. They are weatherproof so they can be mounted on either the roof of
the booth or on the roof of the building, depending on individual needs and
preferences.

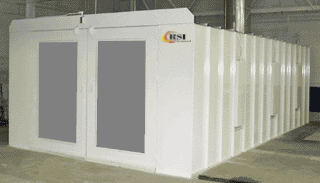

To meet the
demand for an economical spray booth that still provides a complete paint
facility, RSI has designed the AUTO MINI
CROSSFLO spray booth. This booth features standard air flow
(filters in the doors and exhaust at the rear of the booth) and retains the
most important features of a costlier booth without compromising quality and
reliability. The conservative design uses a fan and motor capable of moving
12,000 CFM through the booth.
Standard model:
AMB2206
Standard dimension:
-
Inside: 14'0"wide x 8'0"high x
20'0"deep
-
Outside: 15'0"wide x 8'10"high x
22'2"deep
-
Door: 10'0"wide x 8'0"high
Features include:
-
One 34" diameter tube-axial fan
with variable pitch non-sparking blades
-
One 2HP open type motor,
208/230/460VAC, 60Hz
-
All supply filters and exhaust
paint arrestors
-
Six 4-tube T8 fluorescent light
fixtures with clear tempered glass (tubes not included)
-
3'0" x 7'0" personnel access door
-
Manometer to monitor porosity of
filters
-
Installation hardware, caulking,
and door gaskets
-
Blueprints and assembly
instructions
Due to
individual requirements, exhaust stack, air valve, door limit switches and
light tubes are not included and must be ordered separately.

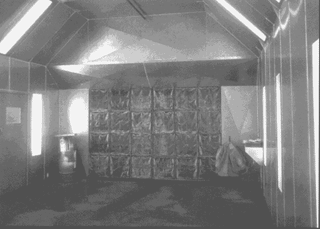

The Custom Aire
ECONOMY CROSSFLO spray booth provides the greatest economy in a
full size booth. This booth features standard air flow (filters in the
doors and exhaust at the rear of the booth) and is built using the same
components of our top-of-the-line booths and so maintains many of the
features of a costlier booth without compromising quality or
reliability.
The air in the booth
is swept clean by a 34" diameter fan driven by a 3HP motor which
produces an exhaust capacity of 14,000 CFM. Eight fluorescent light
fixtures provide even, shadow-less lighting throughout the booth.
STANDARD
MODEL: ASLC2608
STANDARD DIMENSIONS:
Inside: 15'0"wide x 9'10"high x 24'0"deep
Outside: 16'0"wide x 10'0"high x 26'2"deep
Door: 10'0"wide x 9'0"high
STANDARD
FEATURES:
- 1 - 34" diameter tube-axial fan with
variable pitch, non-sparking blades
- 1 - 3HP open type motor for operation on
208/230/460 VAC, 60Hz, 1 or 3 phase
- All supply filters and paint arrestors
- Fluorescent light fixtures with clear
tempered glass (tubes not included)
- 3'0" x 6'6" personnel access door
- Manometer to monitor porosity of arrestors
- Installation hardware, caulking, and door
gaskets
- Blueprints and assembly instructions
Exhaust stack, air
valve, limit switches, and light tubes are not included and must be
ordered separately.
|
