Two (2) Pre-Owned, Single Pass Gas Fired Drying Ovens will be furnished approximately 29’-0” long X 9’-9” wide X 11’-3” high and in accordance with the following specifications:




































































































Interested parties note "Item #" and call 1-502-213-3865
or e-mail
artrhodes@rsisystemsinc.net

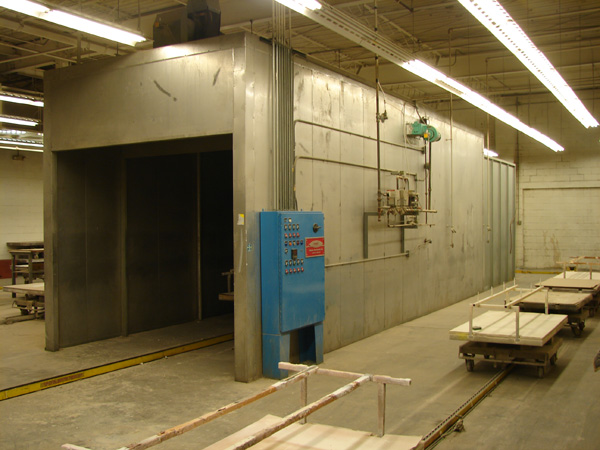

Click photo to make larger

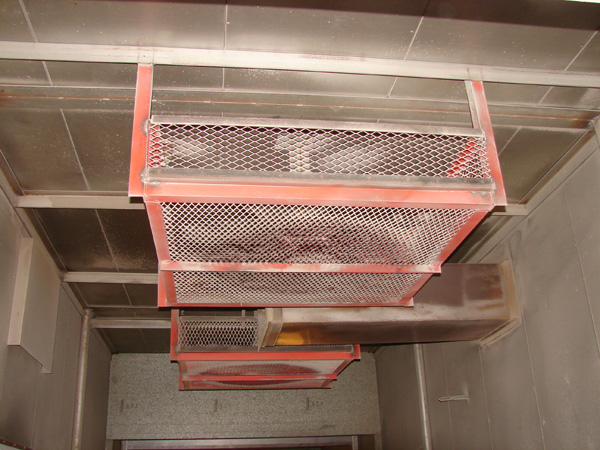

Click photo to make larger

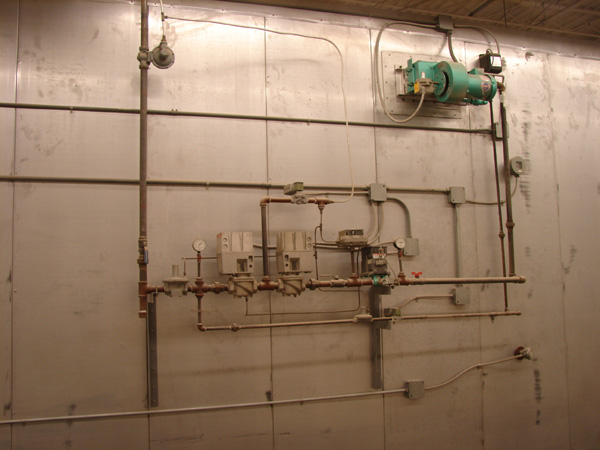

Click photo to make larger

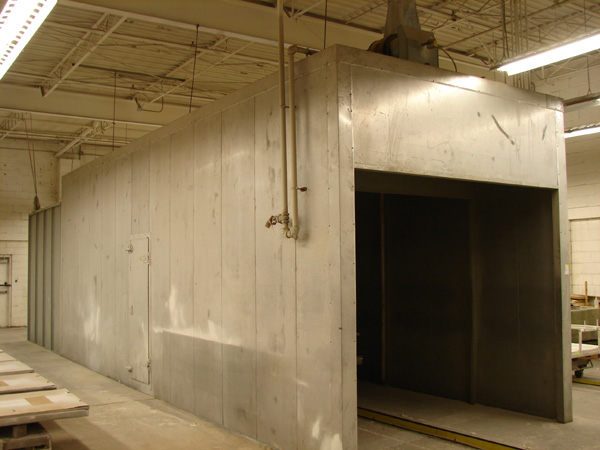

Click photo to make larger

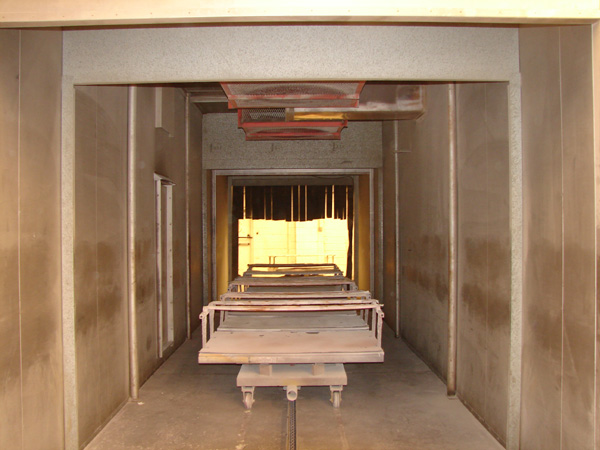

Click photo to make larger

PLANT UTILITIES

    440 Volt, 3 Phase, 60 Hertz

    Natural Gas, 15” W.C. at Equipment

DESIGN SPECIFICATIONS

    Function – Drying

    Temperature - 130° F. Operating, - 180° F. Max.

    Method of Heating – Direct Gas Fired Heater

    Fuel – Natural Gas, 1,000 BTU per Cubic Ft., 3.6” W.C. at Burner

    Power Characteristics – Motors – 480V, 3 Phase, 60 Hertz

    Controls – 110V, 1 Phase, 60 Hertz

OPERATIONS SPECIFICATIONS

    Heater Capacity – One (1) 1,000,000 BTU Heater

    Circulation – Two (2) 20,000 CFM Propeller Fans Complete w/ 3HP, open drip proof motor and motor controls

    Ignition – Automatic, Manual selection

    Purge Time – Approximately 20 Minutes

    Safety Equipment – Necessary safety control for FM approval will include flame failure protection of the flame monitoring type utilizing a flame rod, safety gas shut-off valve, high/low gas pressure switch and pilot with solenoid.

    Control – Partlow automatic, modulating indicating controller

    Exhaust Fans – One (1) 1,500 CFM centrifugal exhaust with 3/4HP motor and controls



PHYSICAL SPECIFICATIONS

    Work Openings – 9’-0” wide X 8’-0” high

    Inside Dimensions – 28’-6” long X 9’3” wide X 11’-0” high

    Personnel Door – One (1) included, 30” x 72” complete with frame, handle, hinges, gasket and explosion latches

    Panel Construction – Standard, telescoping; 20 gauge aluminized steel exterior and interior separated by 3” mineral wool and/or equal semi-rigid insulation w/ non-settling characteristics

    Oven Floor – Present factory floor

    Burner Location – On side of oven, near top

    Control Panel – One (1) prewired, shop tested, free standing NEMA-12 panel will be furnished with circuits prewired to terminal strips.  A door mounted disconnect with interlock hardware to prevent opening the door without disrupting the power supply is included.  A control voltage transformer will be furnished to reduce the main voltage to 110 Volts for control circuits.

    Gas Trains – Gas cocks, gauges, gas control valves, pilot solenoid regulators, high/low pressure switches and main gas regulators have been included.

EXHAUST STACKS

    By Others
