RSI Used Finishing Lines & Conveyor Systems

ITEM # 5
Interested parties note "Item #" and call 1-502-213-3865
or e-mail artrhodes@rsisystemsinc.net

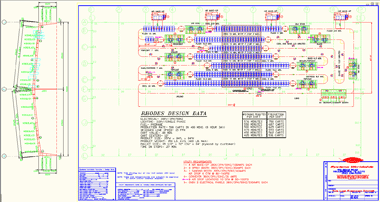

Description           {FLOOR CONVEYOR}

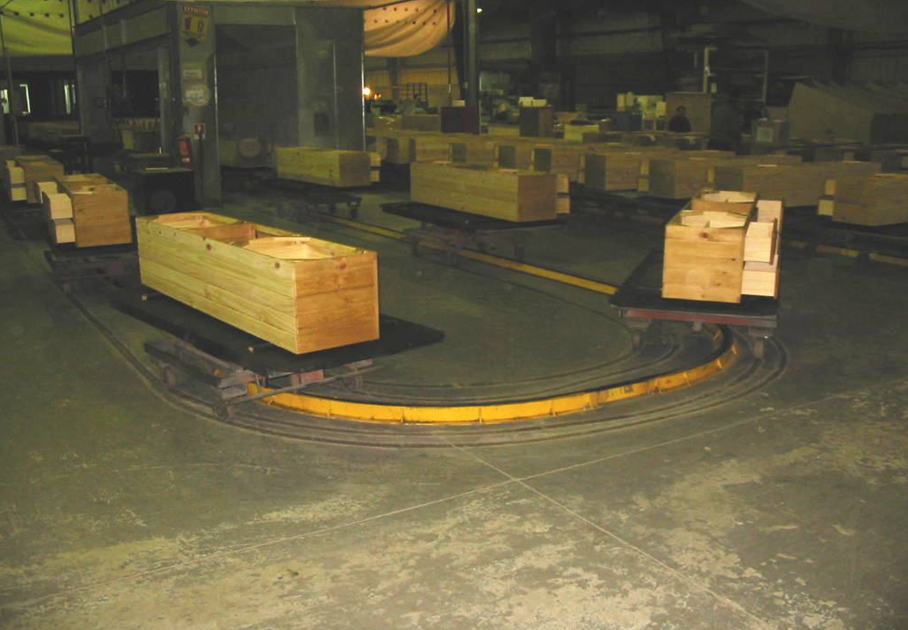

Approximately  2,260’ of Tow Conveyor and 375 Tow Carts

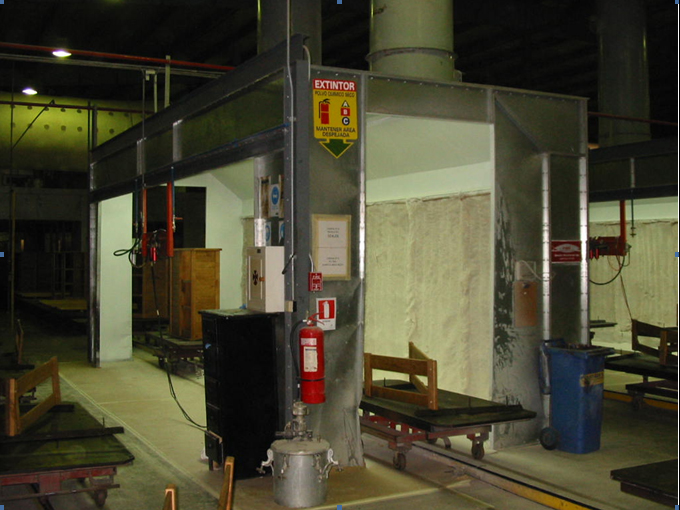

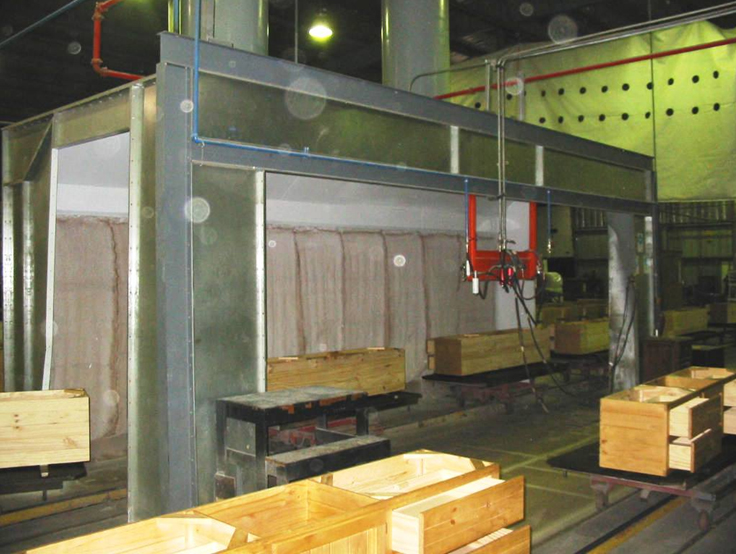

Nine (9) 25’-0” L. x 10’-8” H. x 10’-2” D. Dry Filter Back Spray Booth

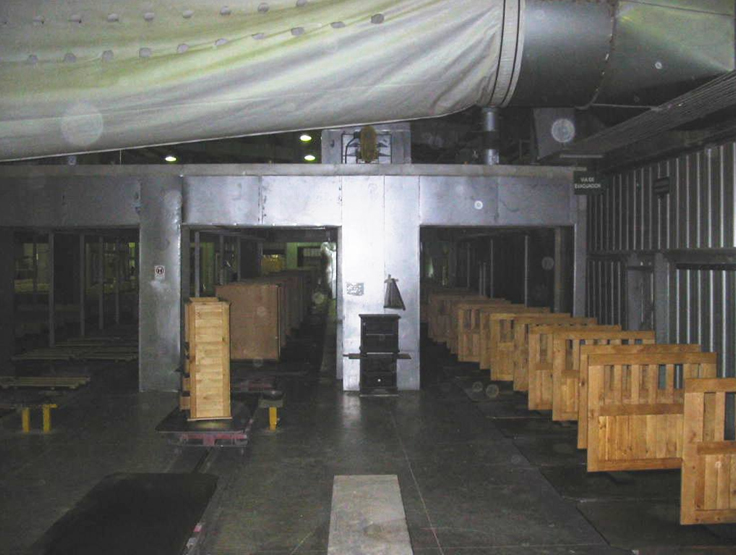

One (1) 48’-0” L. x 76’-8” W. x 12’-3” H...Multi-Pass Oven

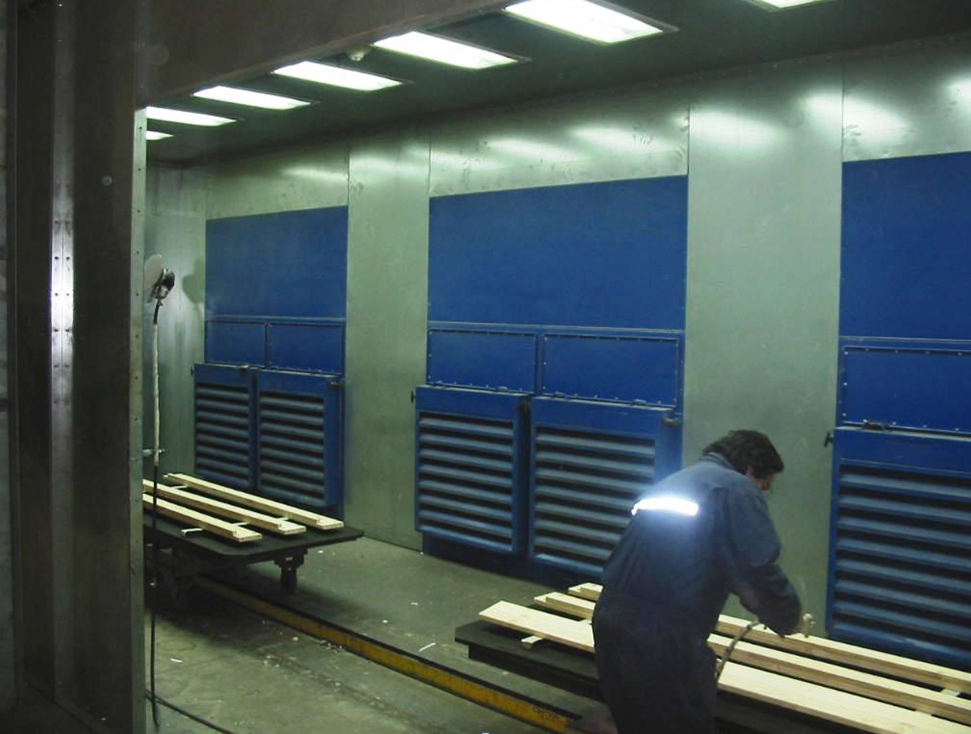

One (1) 30’-0” L. x 10’-0” H. x 10’-0” D. Sanding Booth

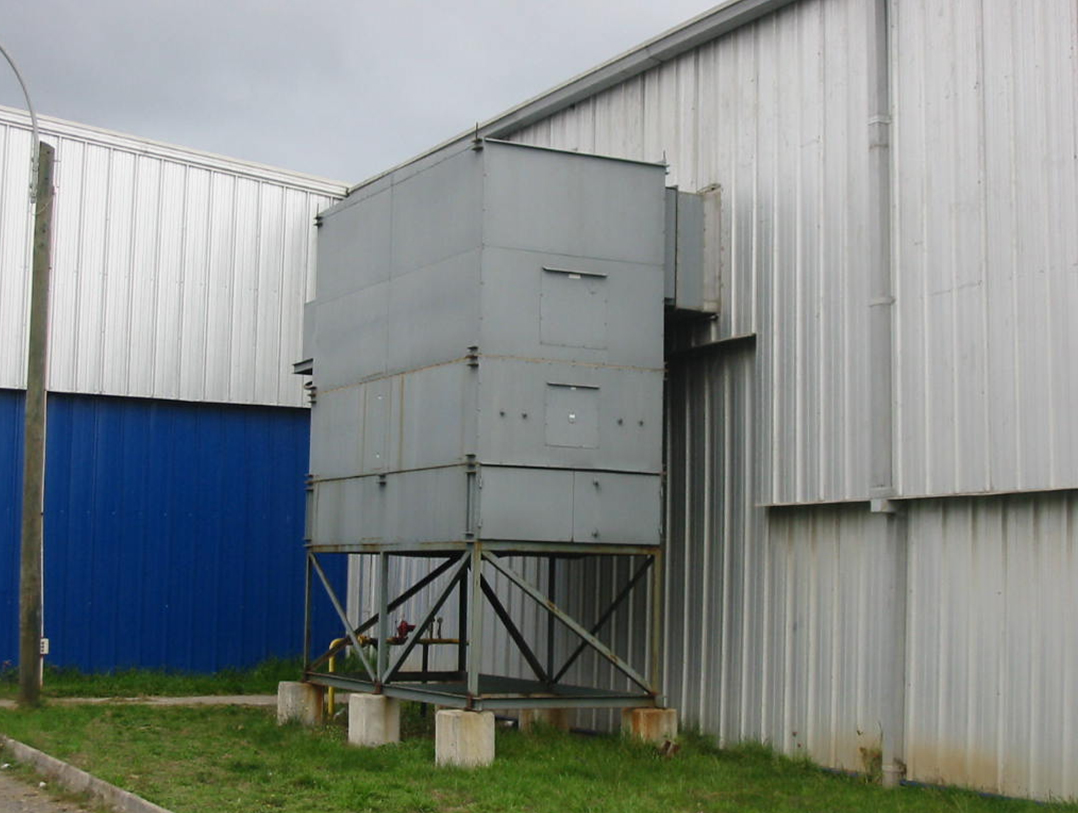

Four (4) 75,000 CFM Air Make-Up Unit

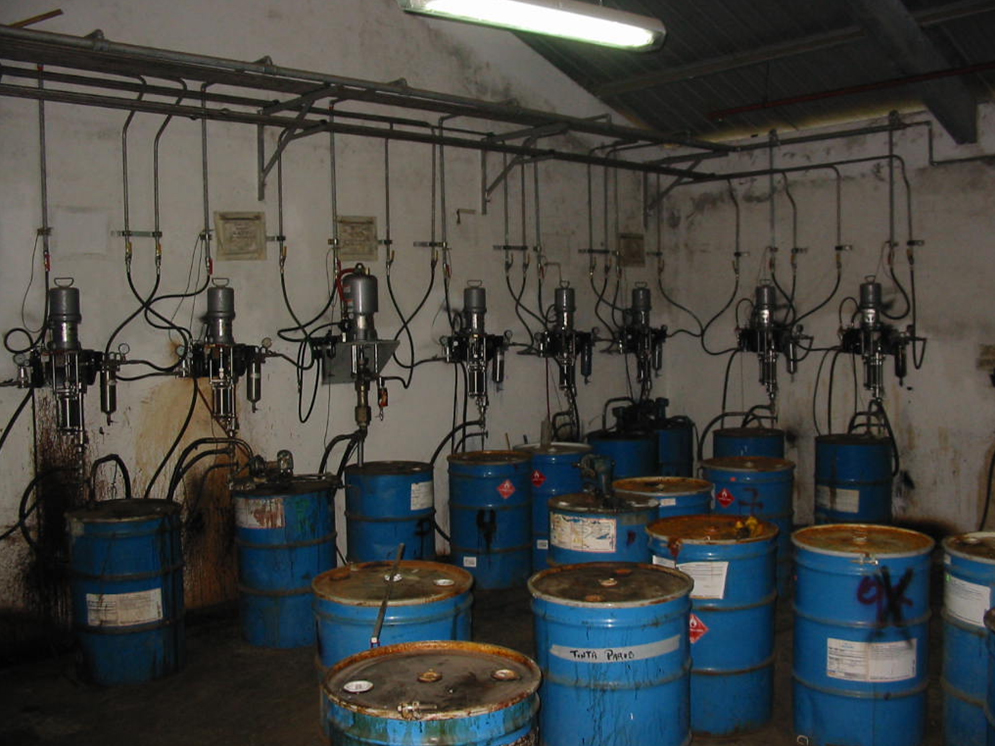

One (1) Complete Pump Room for System

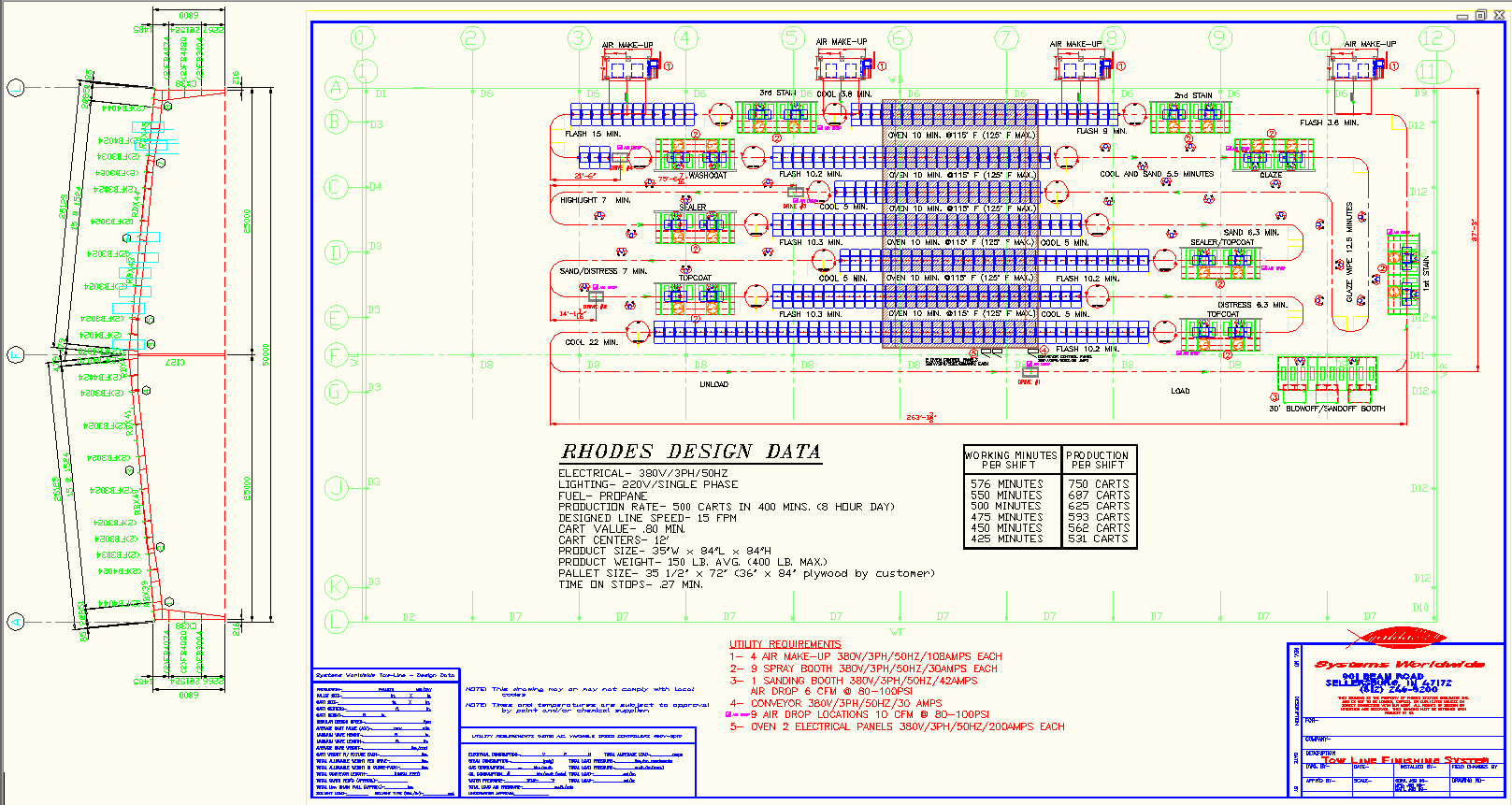

System Specifications
Electrical – 380V / 3Ph / 50Hz
Lighting- 220V /1PH
Fuel - Propane
Production – 500 Carts per 400 min. (8 hr. Day)
Cart Value – .80 min.
Line Speed – 15 FPM (Variable 8 to 20 FPM)
Cart Centers – 12’-0”
Pallet Size – 35 ½” x 72” (36” x 84” x ¾” Plywood Top by Customer)
Product Size - 35” wide x 84” long x 84” high
Product Weight – 150 lb. avg. (400 lb. max.)
Approximate exhausted CFM’s of proposed equipment- 282,600
