RSI Used Equipment/Systems Index







RSI Used Finishing Lines & Conveyor Systems

ITEM # 4
Interested parties note "Item #" and call 1-502-213-3865
or e-mail artrhodes@rsisystemsinc.net



System Specifications
Electrical – 480v, 3ph, 60hz
Fuel – Natural Gas
Production – 200 carts/460 min. (8 hour shift)
Cart Value – 2.3 min.
Designed Line Speed – 12 FPM
Cart Centers – 27’-7”
Pallet size – 35 ½” x 72” (42” x 96” plywood top by customer)
Pallet height – 18”
Product size – 48”H x 84”L x 42”W
Product weight – 225 lb. average per cart










Description

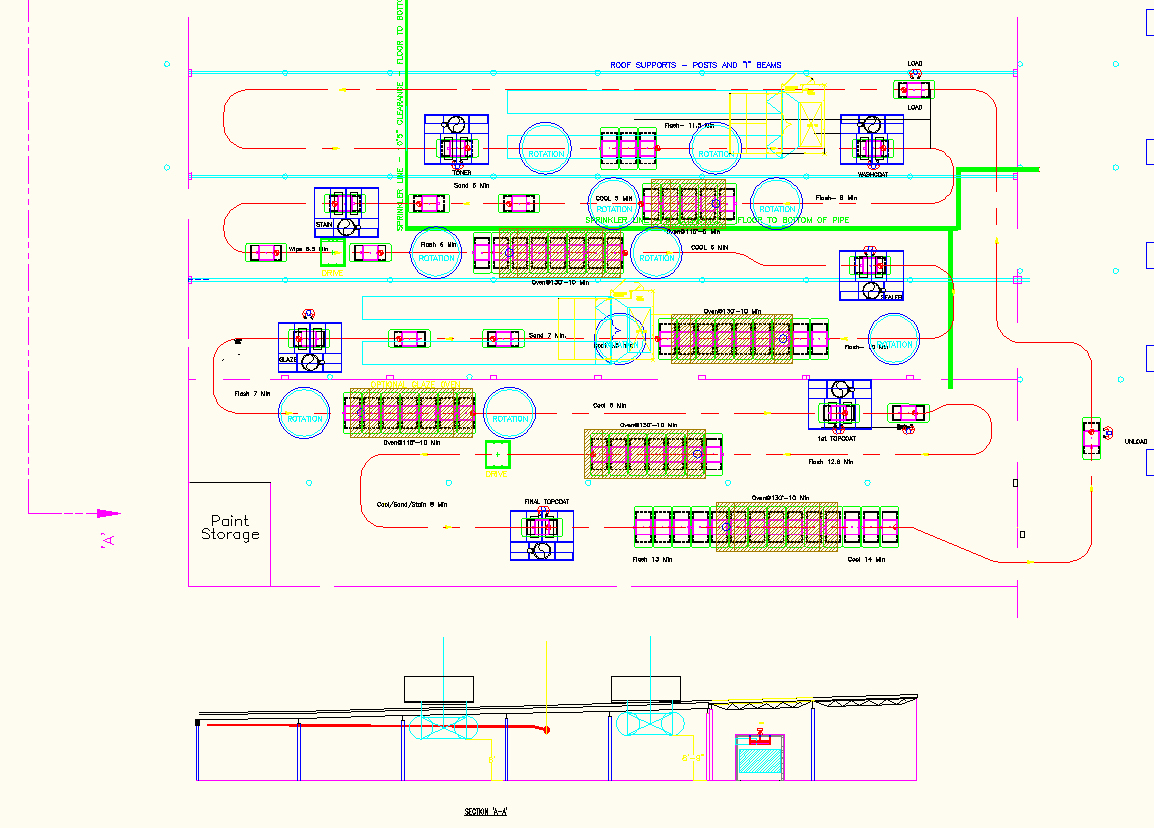

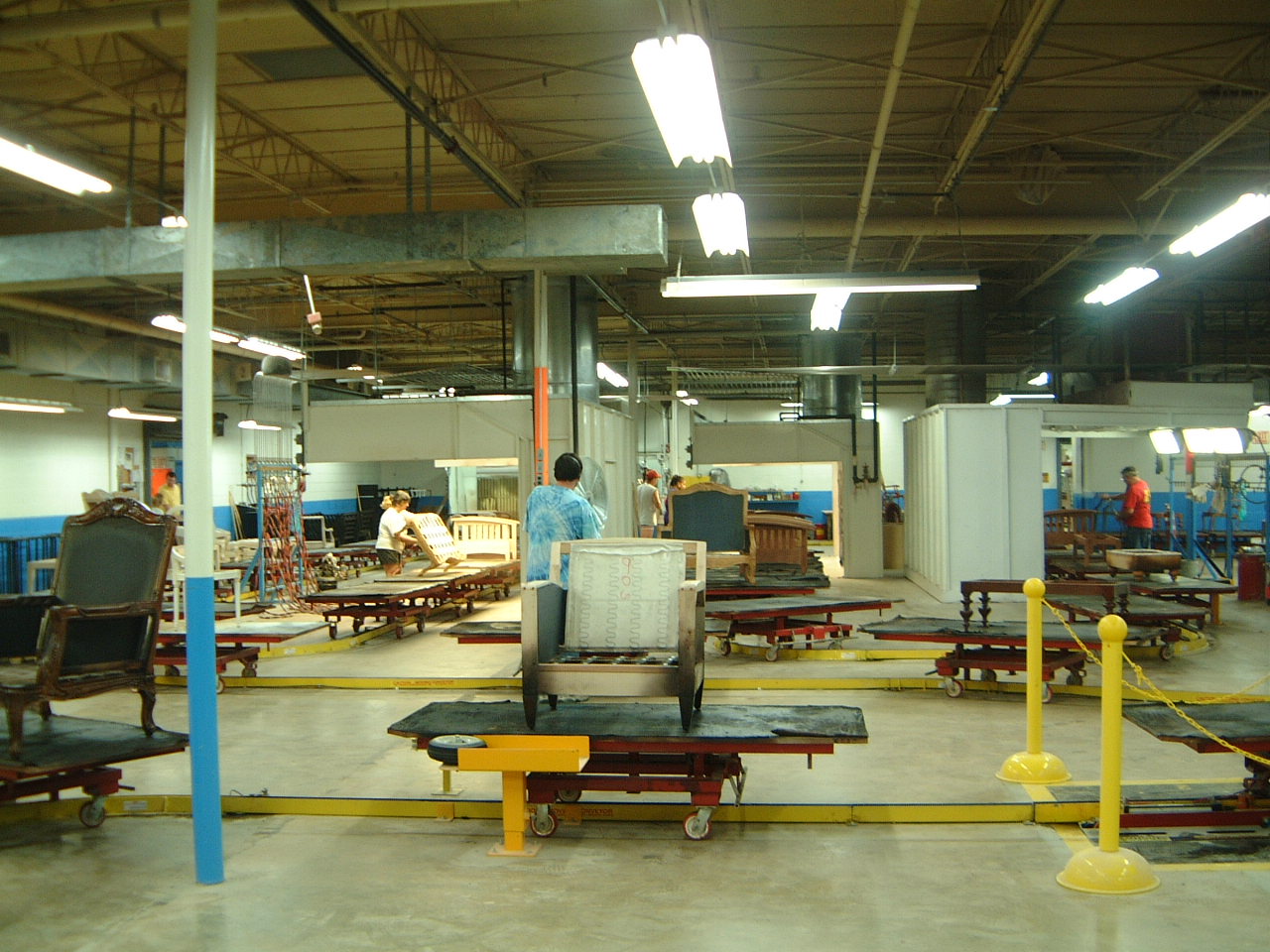

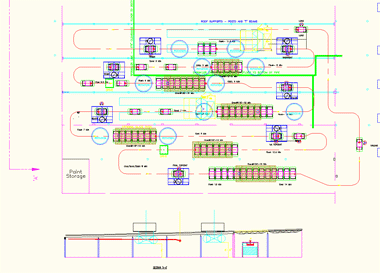

One (1) Rhodes Tow Conveyor approximately 1291 linear feet with One Hundred, Three (103) carts.

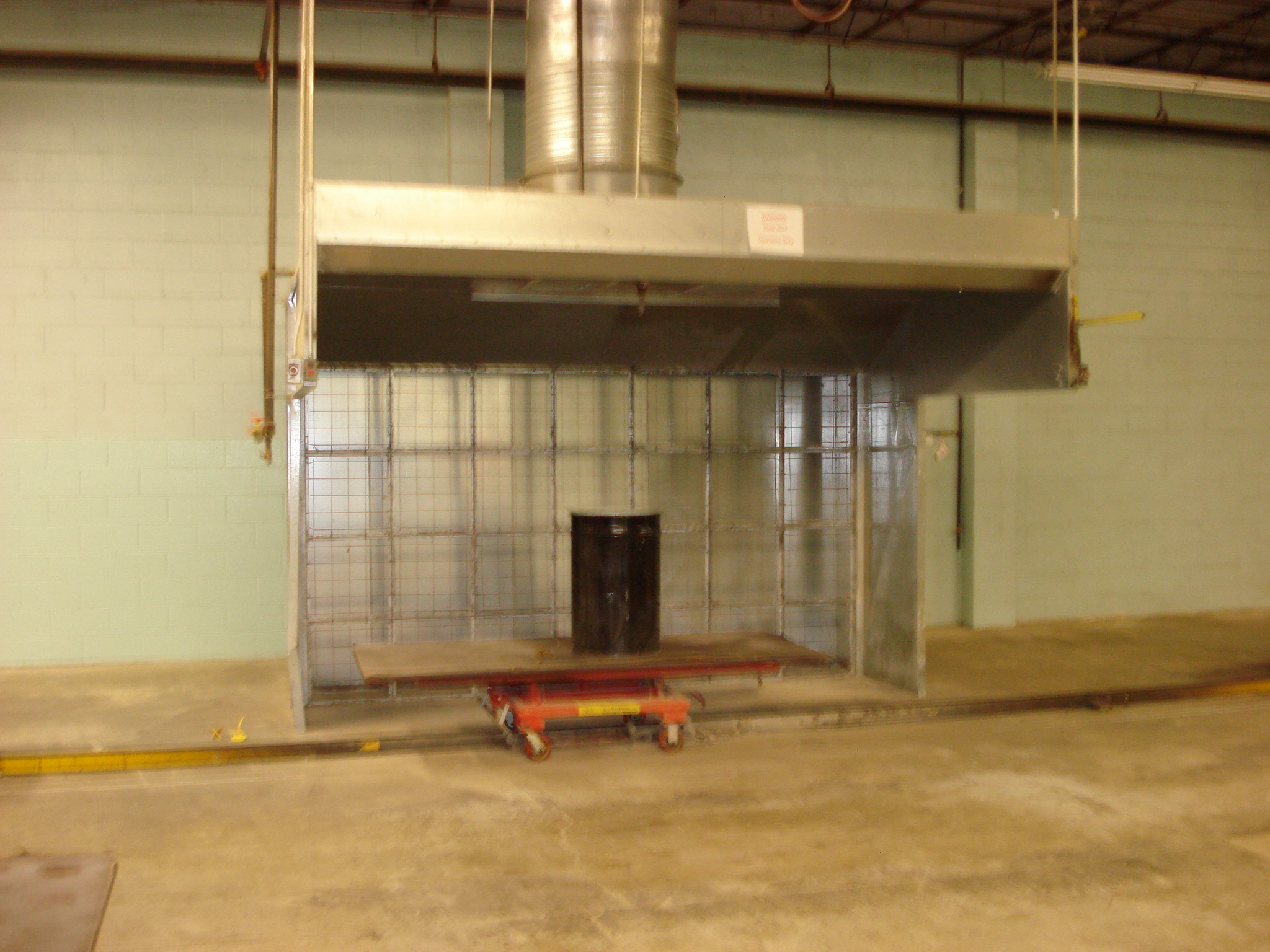

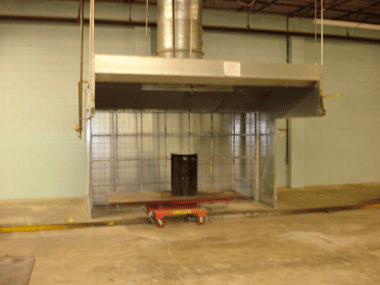

Seven (7) Rhodes 12’-0” long x 8’-0” High x 10’-0” Deep Dry Filter Back Spray Booth.

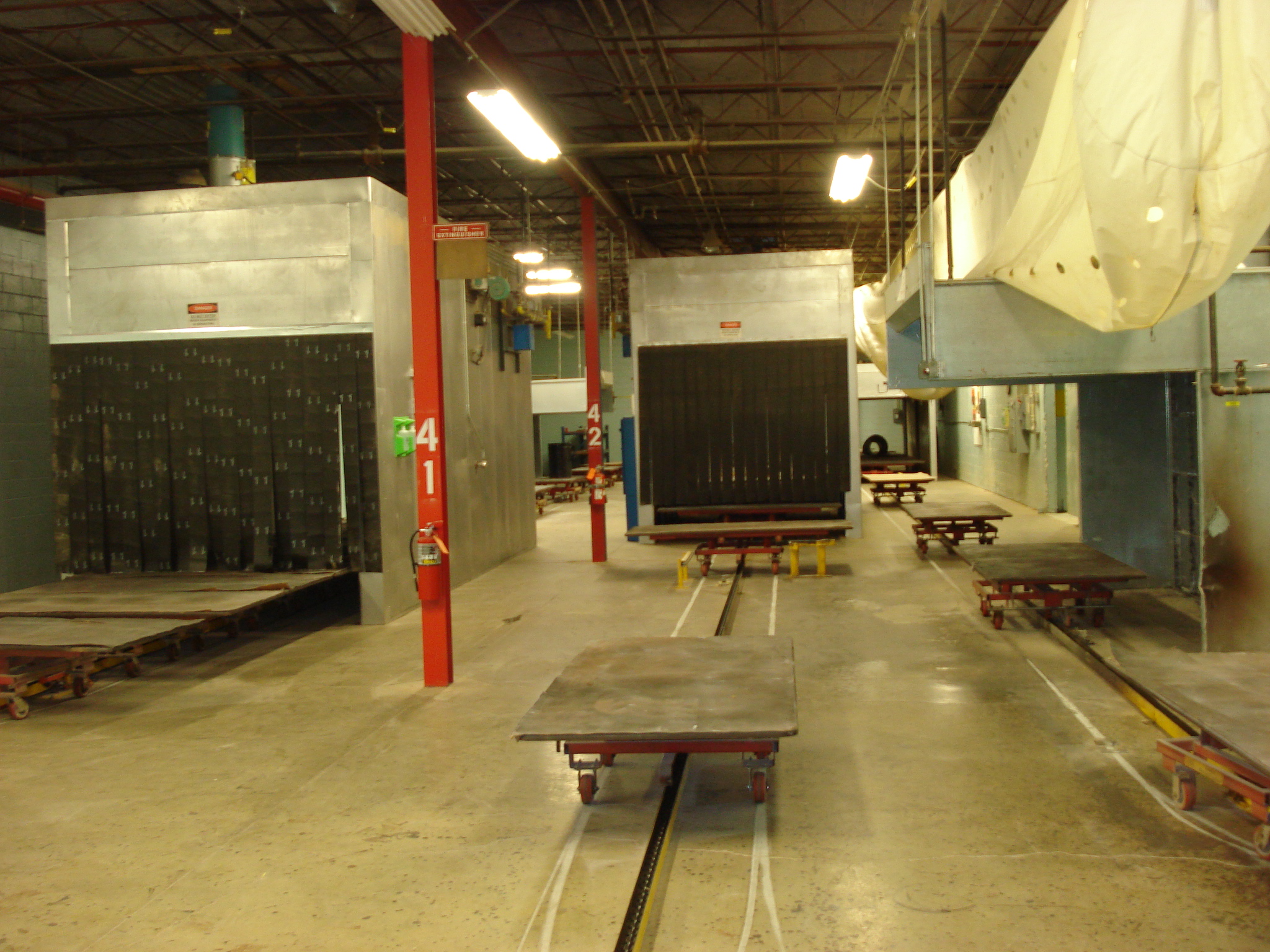

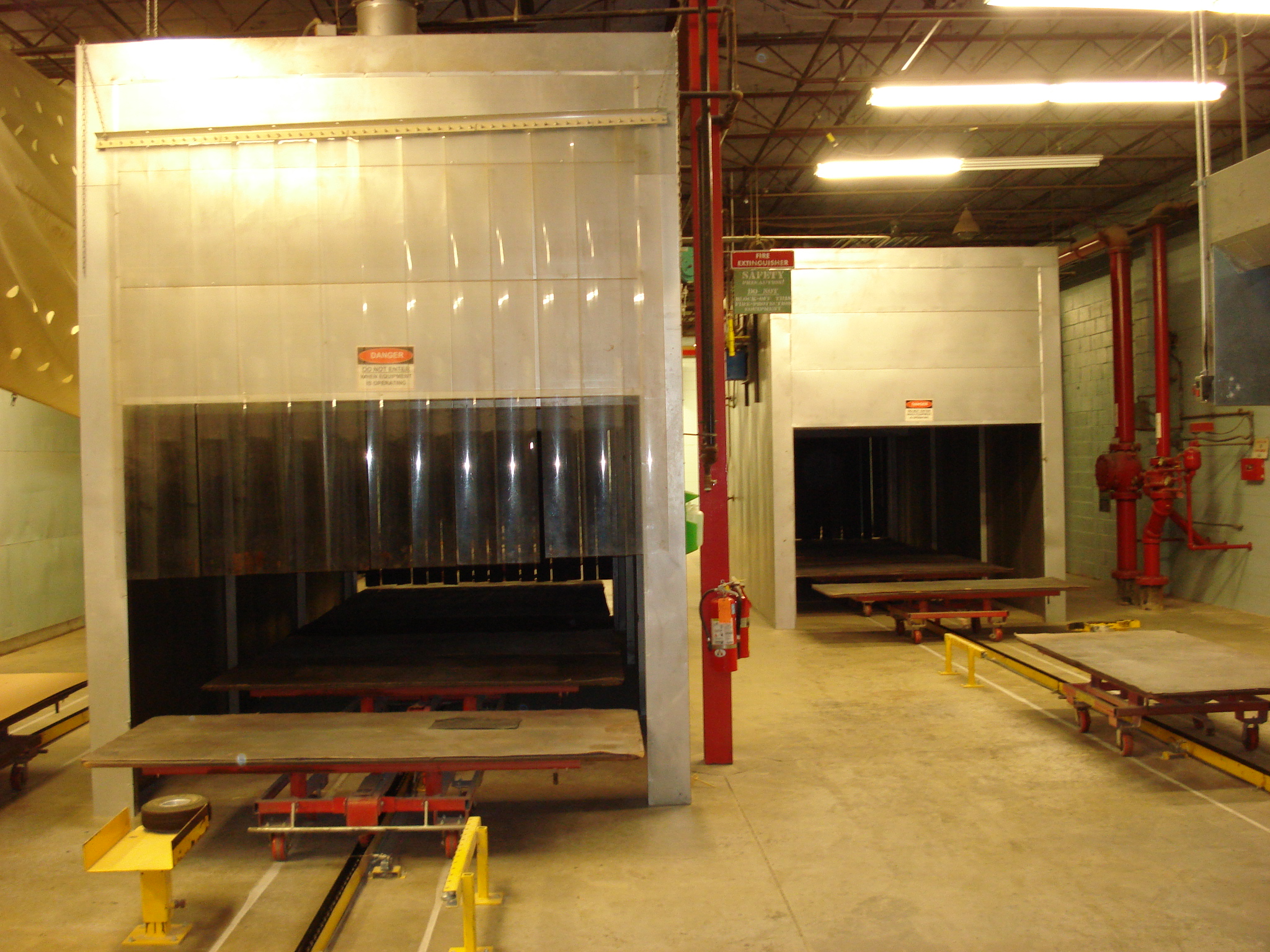

Five (5) Rhodes 24’-0” long x 9’-6” wide x 9’-9” high Cyclone Ovens

One (1) Rhodes 16’-0” long x 9’-6” wide x 9’-9” high Cyclone Ovens



Click Photo to make larger


Click Photo to make larger

















Click Photo to make larger















Click Photo to make larger

Click Photo to make larger
