RSI Used Equipment/Systems Index





RSI Used Finishing Lines & Conveyor Systems

ITEM #
3

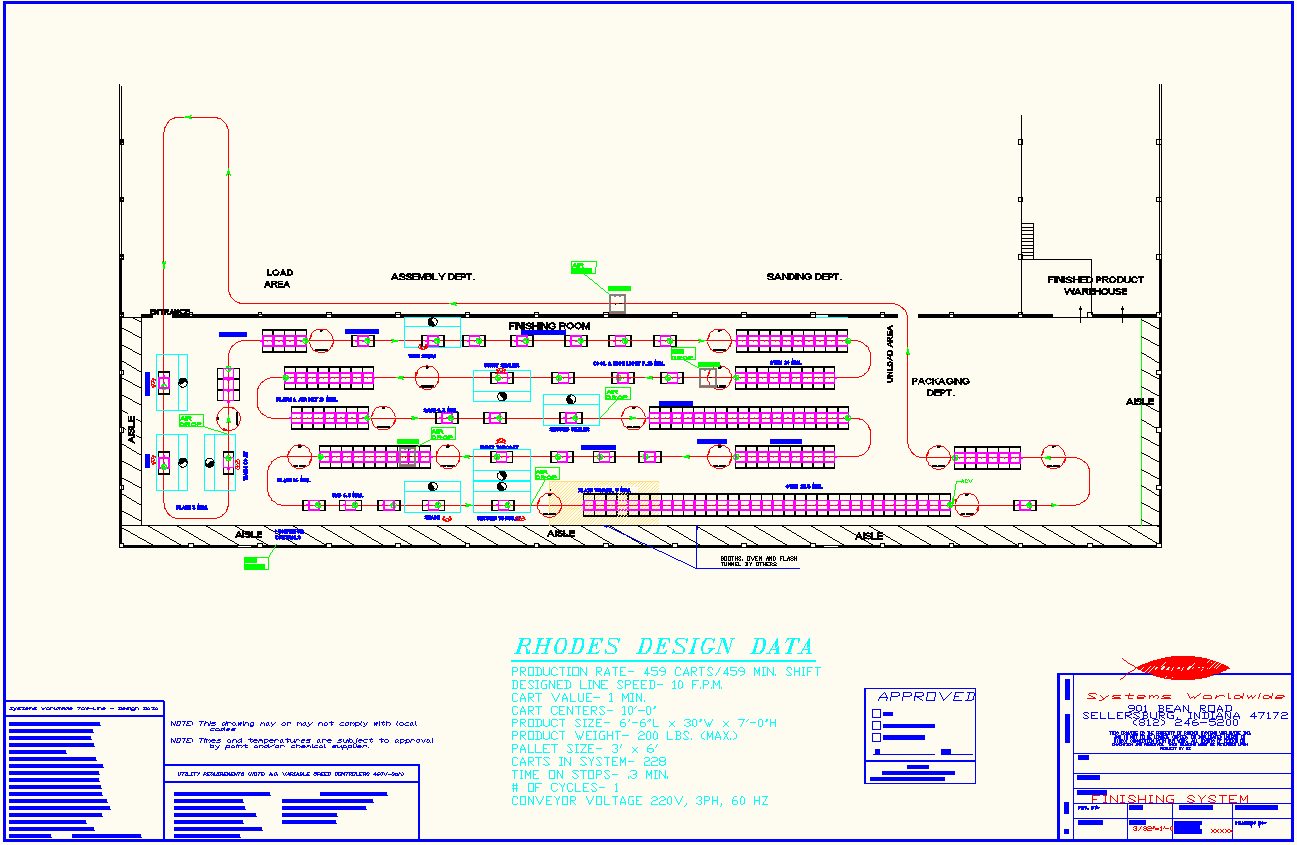

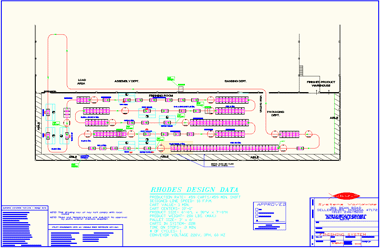

System Specifications
Electrical – 220V, 3PH, 60HZ
Production – 459 carts/459 min. shift (9.5 hour shift)
Cart Value – 1 min.
Line Speed – 10 FPM
Cart Centers – 10’-0”
Pallet size – 35 ½” x 72” (Plywood Top by Customer)
Pallet height – 1’-6”
Product size – 30”W x 84”H x 78”L (max.)
Product weight – 200 lbs. (max.)










Description

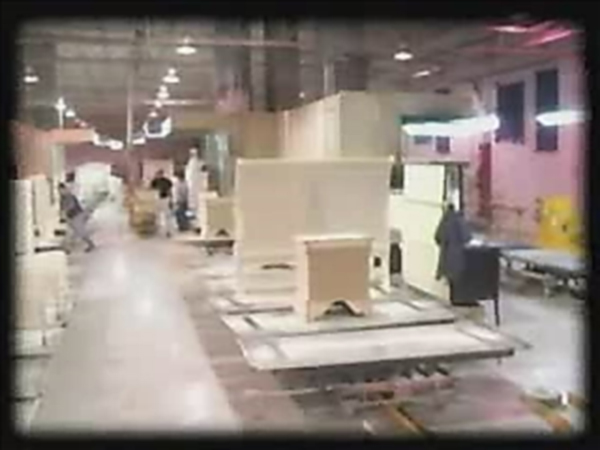

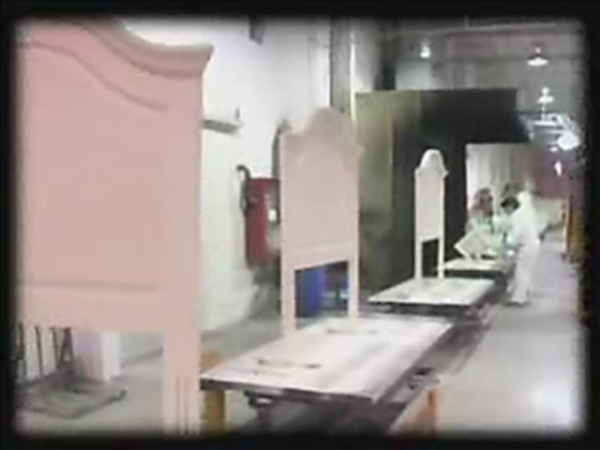

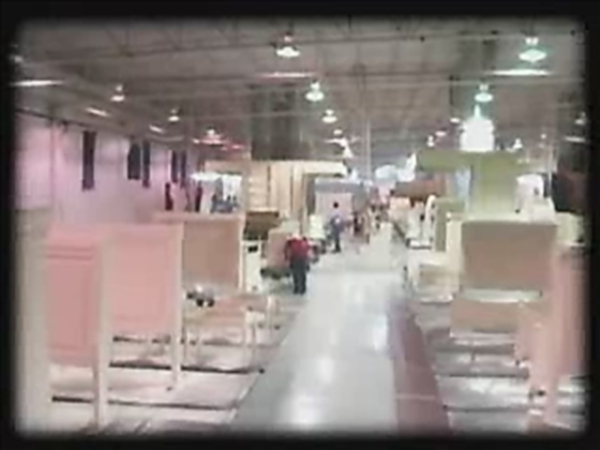

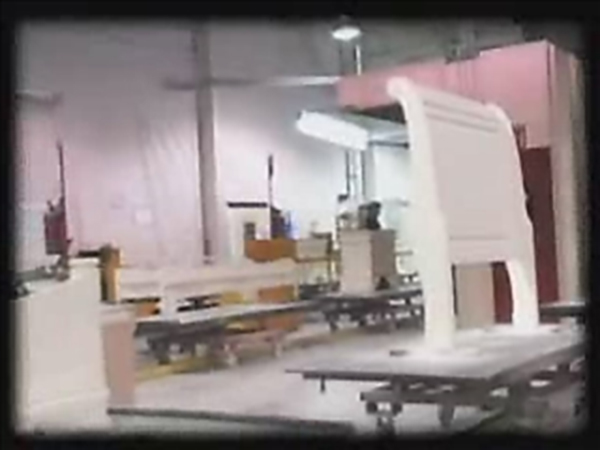

One (1) Rhodes Tow Conveyor approximately 1,510 linear feet with Two Hundred, Thirty -Eight (238) carts.

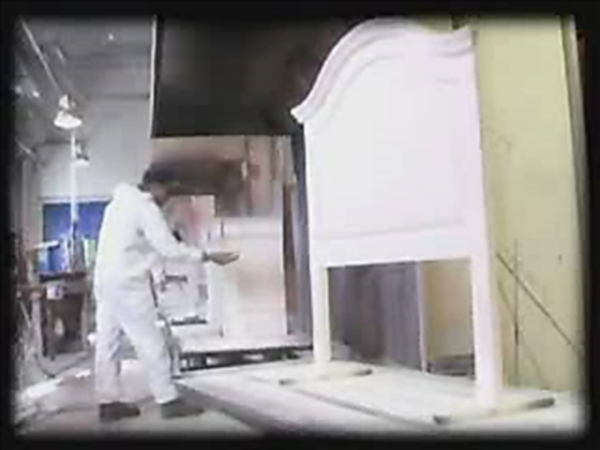

Nine (9) Rhodes 16’-0” long x 8’-6” High x 10’-0” Deep Dry Filter Back Spray Booth.




Click Photo to make larger

















Click Photo to make larger















Click Photo to make larger

Click Photo to make larger




Click Photo to make larger































Interested parties note "Item #" and call 1-502-213-3865
