RSI Used Finishing Lines & Conveyor Systems

ITEM # 2
Interested parties note "Item #" and call 1-502-213-3865
or e-mail artrhodes@rsisystemsinc.net



Description           {FLOOR CONVEYOR}

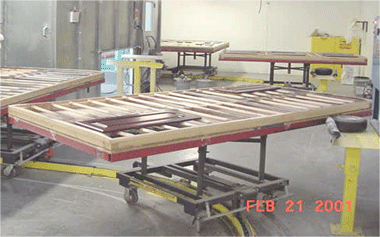

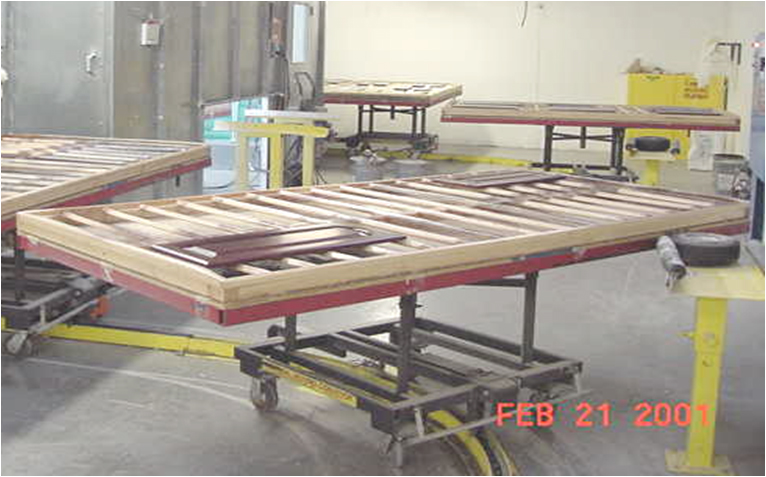

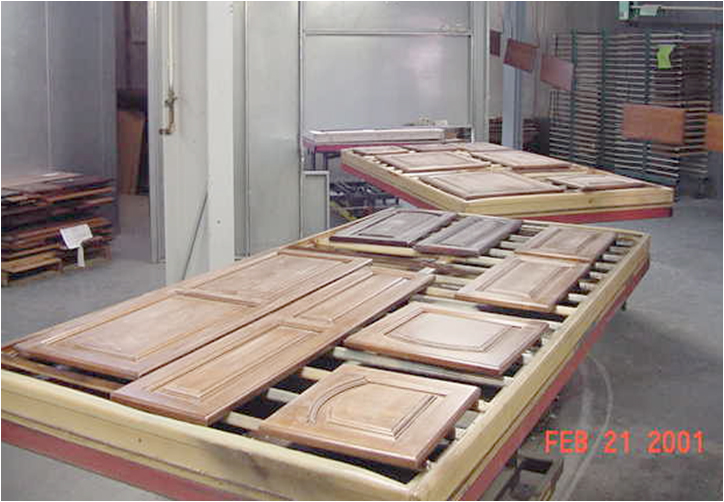

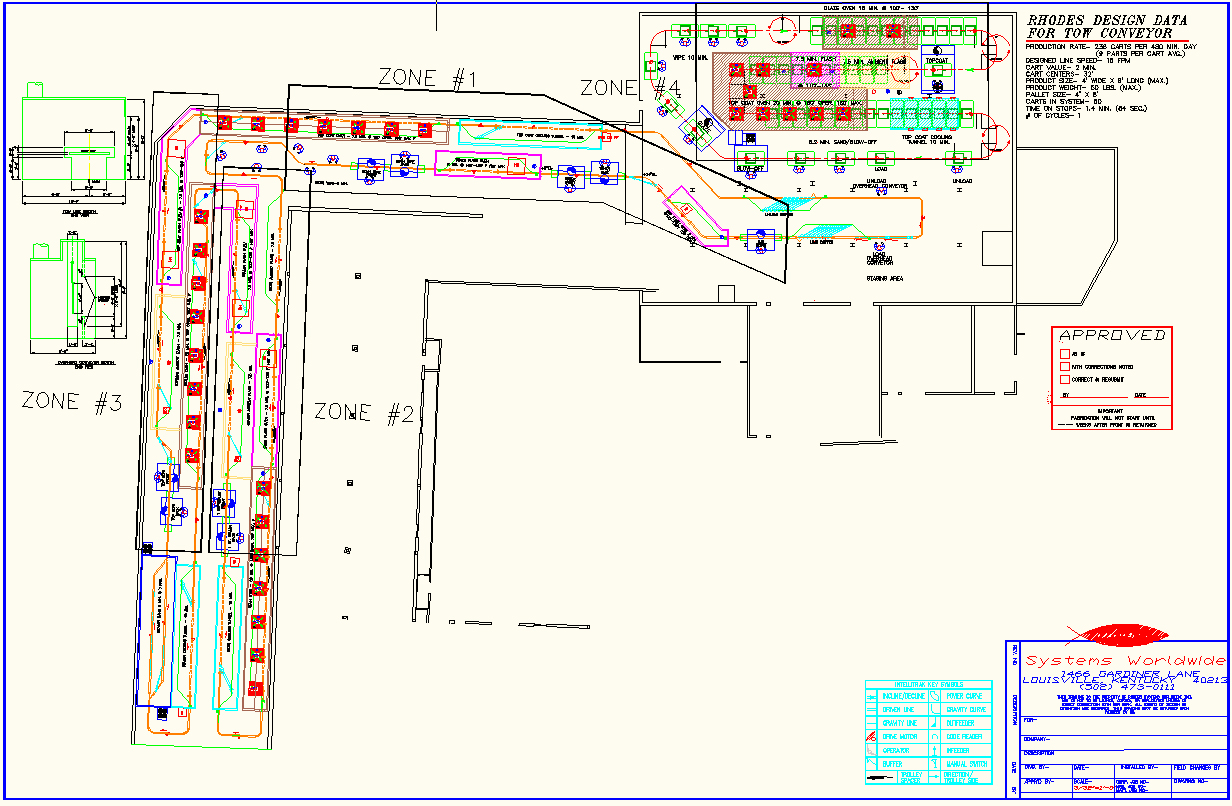

Approximately  416’ of Tow Conveyor and 50 Tow Carts
One (1) 10’-0” L. x 8’-0” H. x 11’-8” D. Clean Booth

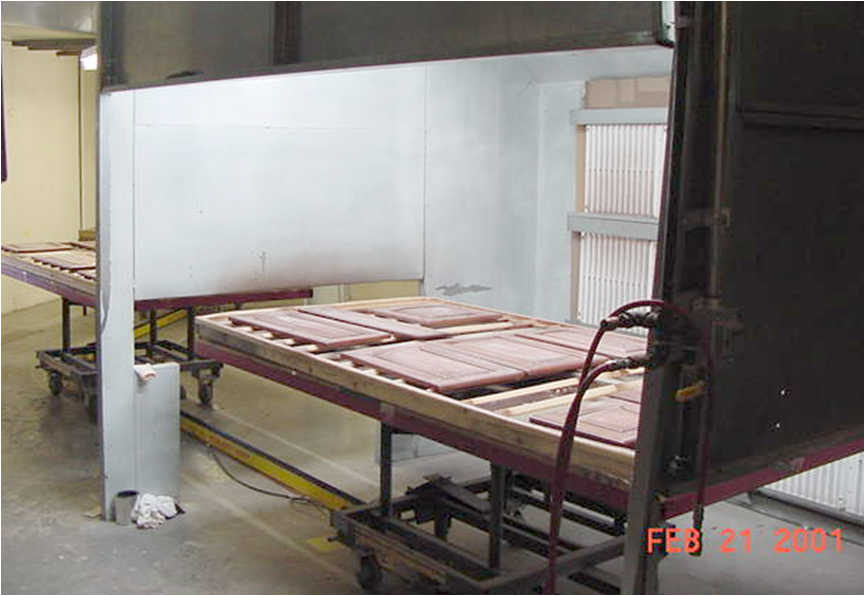

One (1) 10’-0” L. x 8’-0” H. x 9’-8” D. Dry Filter Back Spray Booth
One (1) 46’-0” L. x 23’-6” W. x 10’-3” H..." L "- Shaped Cyclone Oven
One (1) 10’-0” L. x 10’-0” W. x 10’-3” H. Flash Oven
One (1) 29’-0” L. x 10’-0” W. x  10’-3” H. Flash Oven
One (1) 23’-0” L. x 10’-0” W. x 8’-0” H.  Flash Tunnel
One (1) 21’-0” L. x 10’-0” W. x 8’-0” H.  Tunnel
One (1) 10’-0” L. x 8’-0” H. x 11’-10” D. Sanding Booth
One (1) 25,000 CFM Air Make-Up Unit

                          {OVERHEAD CONVEYOR}

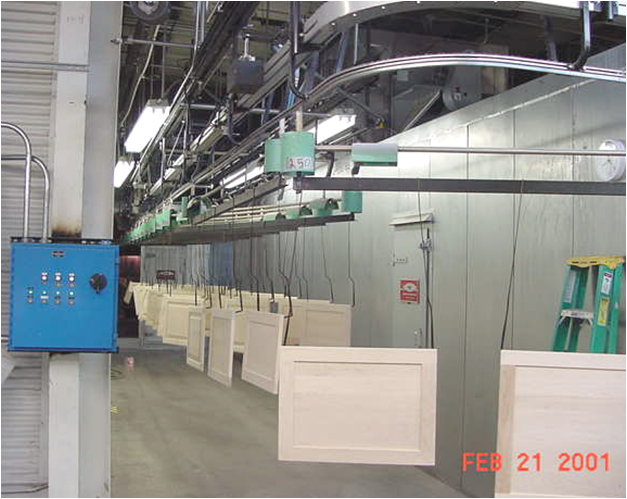

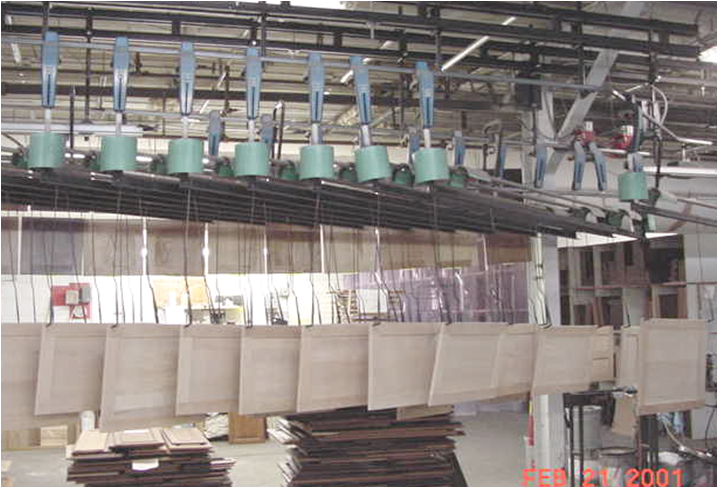

One (1) Overhead Conveyor, with 350 carriers.
Nine (9) 8’-0”L. x 8’-0”H. x 6’-6”D. On Floor Down Draft   Spray Booths
One (1) 90’-0” L. x 10’-3” H. x 7’-8” W. Gas Fired Oven
Two (2) 73’-0” L. x 10’-3” H. x 7’-8” W. Gas Fired Ovens
One (1) 33’-0” L. x 10’-3” H. x 7’-8” W. Flash Oven
One (1) 18’-0” L. x 10’-3” H. x 7’-8” W. Flash Oven
One (1) 40’-0” L. x 10’-3” H. x 7’-8” W. Flash Oven
Two (2) 45’-0” L. x 10’-3” H. x 7’-8” W. Flash Ovens
Three (3) 43’-0” L. x 10’-3” H. x 7’-8” W. Cooling Tunnels
Two (2) 41’-0” L. x 10’-3” H. x 7’-8” W. High Flash Tunnels
One (1) 48’-0” L. x 10’-3” H. x 11’-0” W. Sanding Tunnel
One (1) 48,000 CFM Air Make-Up Unit

System Specifications
Electrical - 480v / 3ph / 60c
Fuel - Natural gas
Tow Conveyor Production - 236 carts/480 mns (9 hours)
Average 9 parts per cart x 236 = 2,124 parts
Cart Value - 2 minutes
Line Speed - 16 FPM
Cart Centers - 32’
Pallet size - 48” x 96”
Pallet height - 32” (From floor to the top of the pallet)
Product size - 48”W x 96”L x 24”H
Product weight - 100 lb. (max)

Overhead Conveyor Production - 800 carriers /480 minutes (9 hours)
Average 2.5 parts per carrier x 800 = 2,100 parts
Approx. Line Speed - 14 FPM
Carrier length - 96”
Product size - 48”W x 96”L x 2”D
Product weight - 100 lb. (max)
Approximate exhausted CFM’s of proposed equipment - 65,800
