RSI Used Equipment/Systems Index







RSI Used Finishing Lines & Conveyor Systems

ITEM # 1
Interested parties note "Item #" and call 1-502-213-3865
or e-mail artrhodes@rsisystemsinc.net

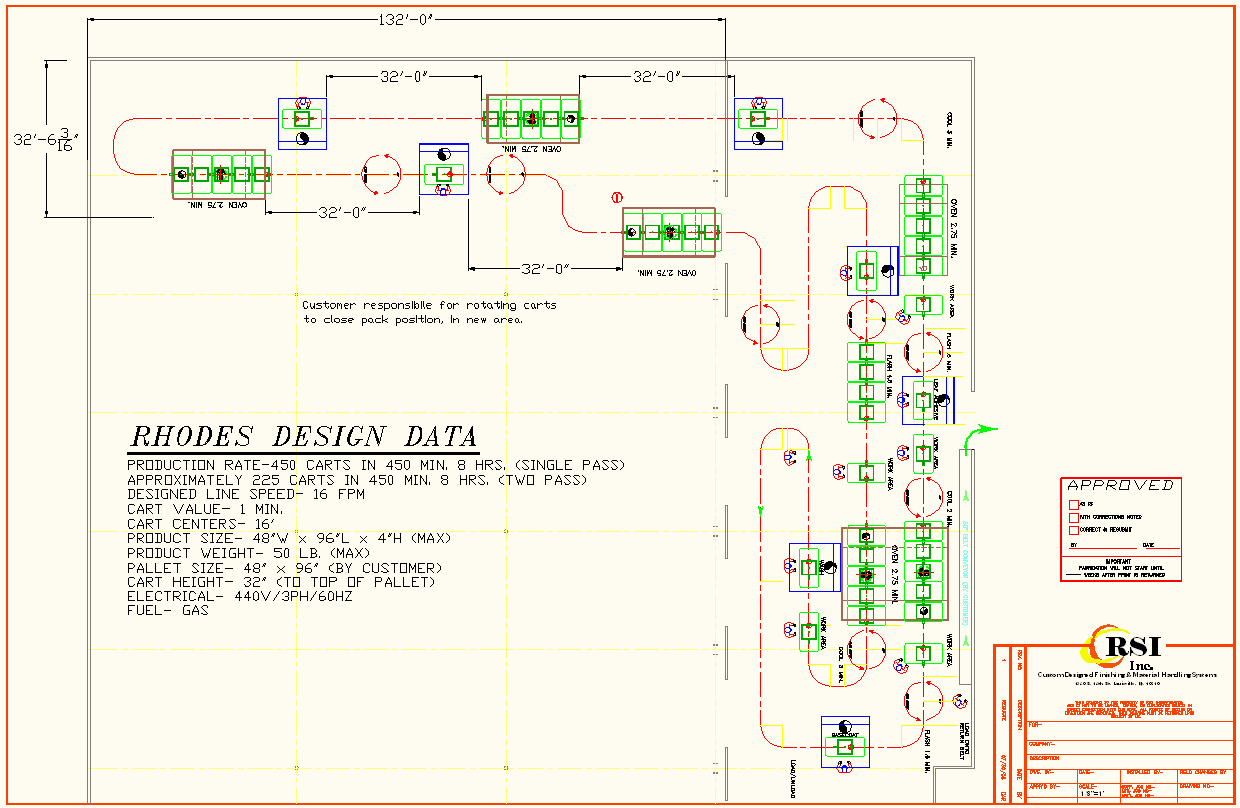

System Specifications
Electrical - 440Volts / 3Ph / 60Hz
Fuel - Natural Gas
Production - 450 Carts in 450 minutes (8 hrs.)
Cart Value - 1 Minute Line Speed - 16 FPM
Cart Centers - 16’
Pallet size - 48” x 96” (By Customer)
Cart height - 32” (to top of pallet)
Product size - 48” wide x 96” long x 4” high
Product weight - 50 lb. (max.)
Approximate exhausted CFM’s of proposed
equipment - 33,600 CFM’s










Description

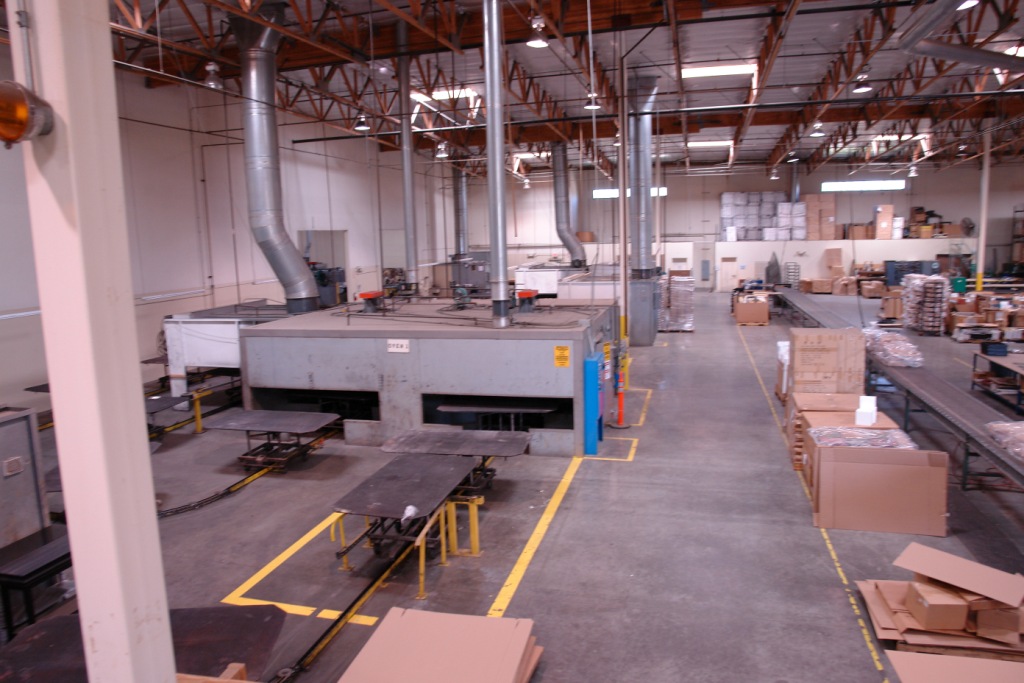

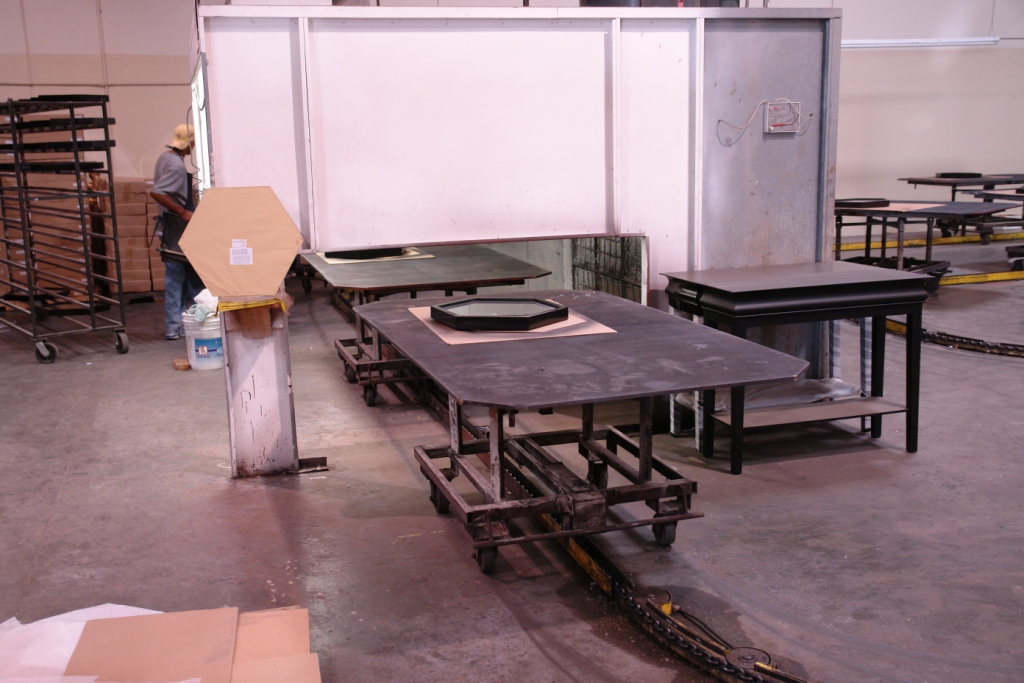

One (1) Rhodes Tow Conveyor approximately 792 linear feet with Eighty (80) carts.

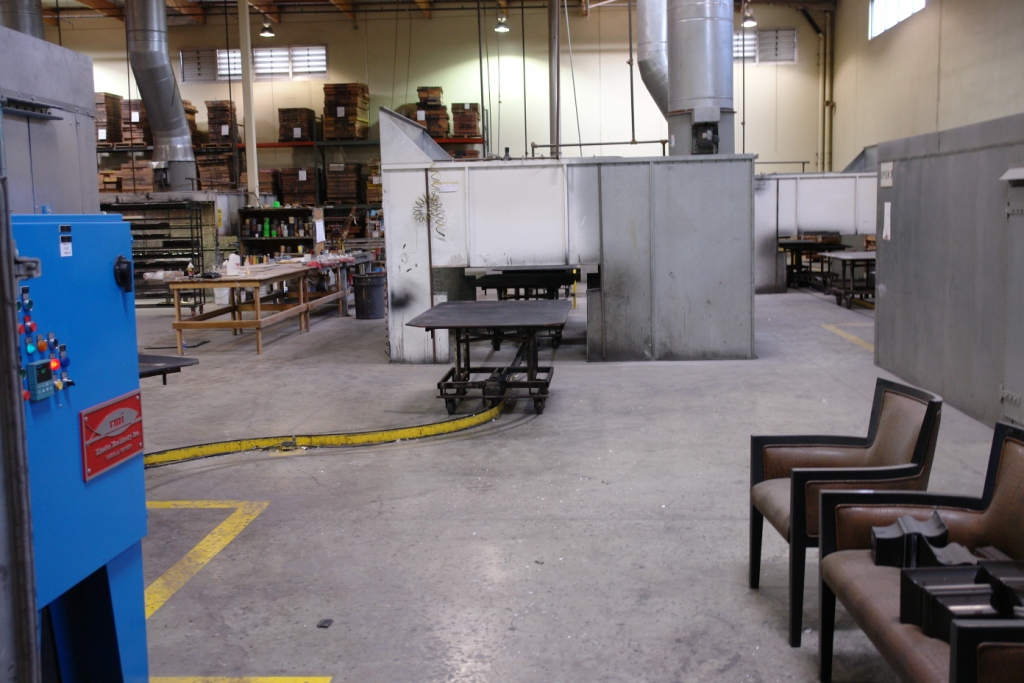

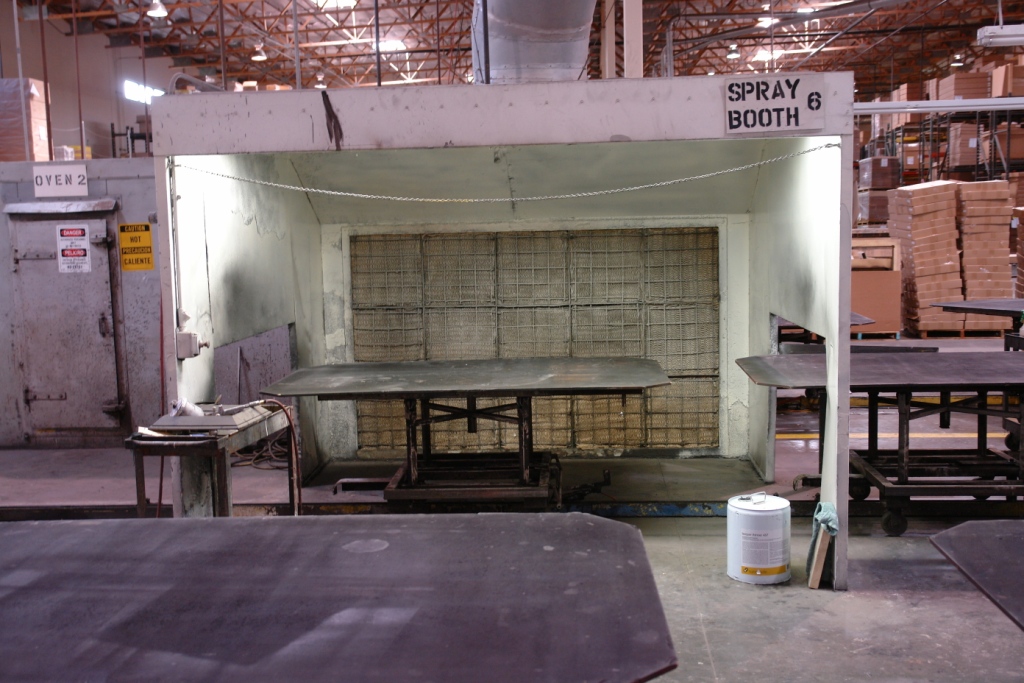

Four (4) Rhodes 10’-0” long x 7’-0” High x 10’-8” Deep Dry Filter Back Spray Booth.

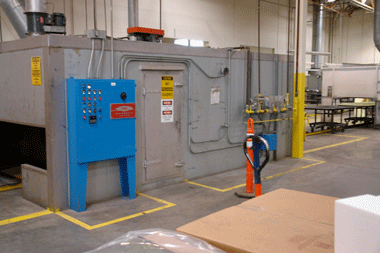

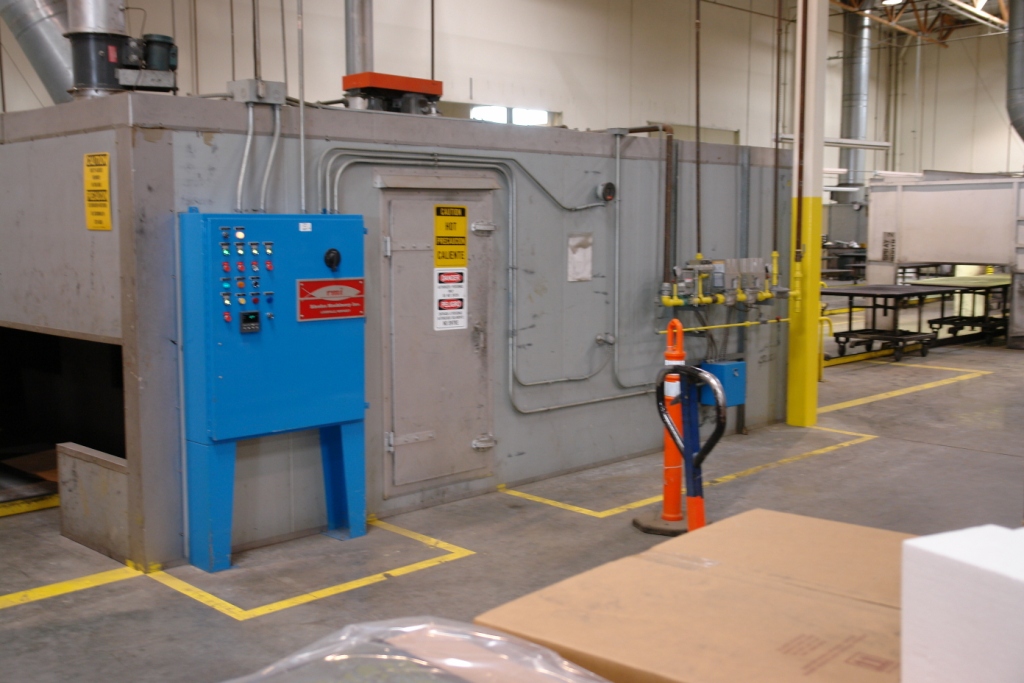

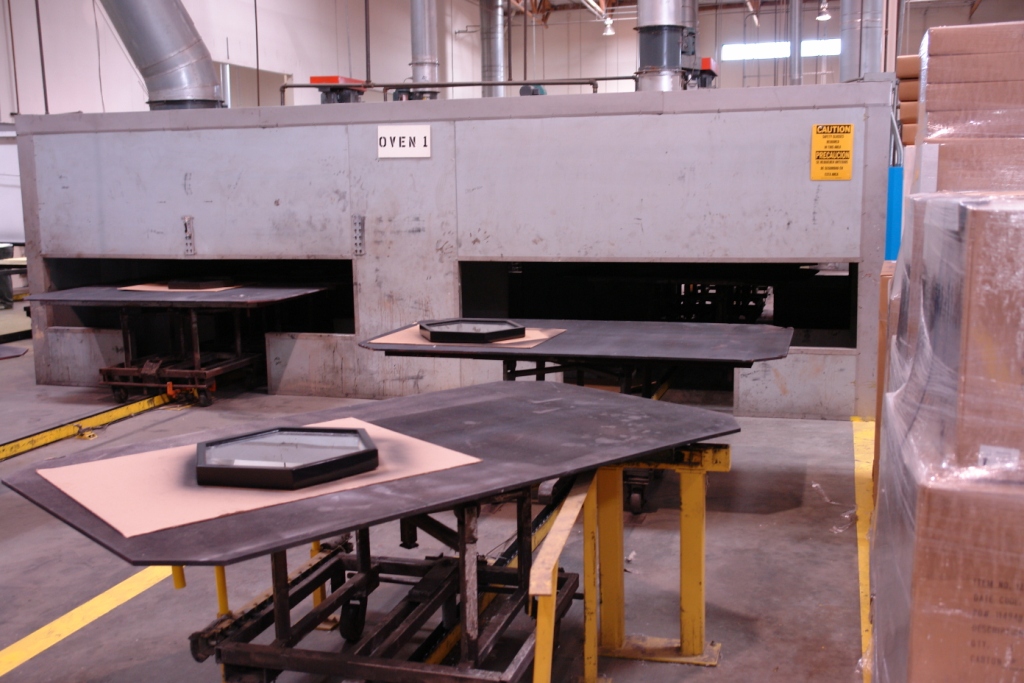

One (1) Rhodes 19’-0” long x 22’-0” wide x 7’-0” high Double Pass Cyclone Oven

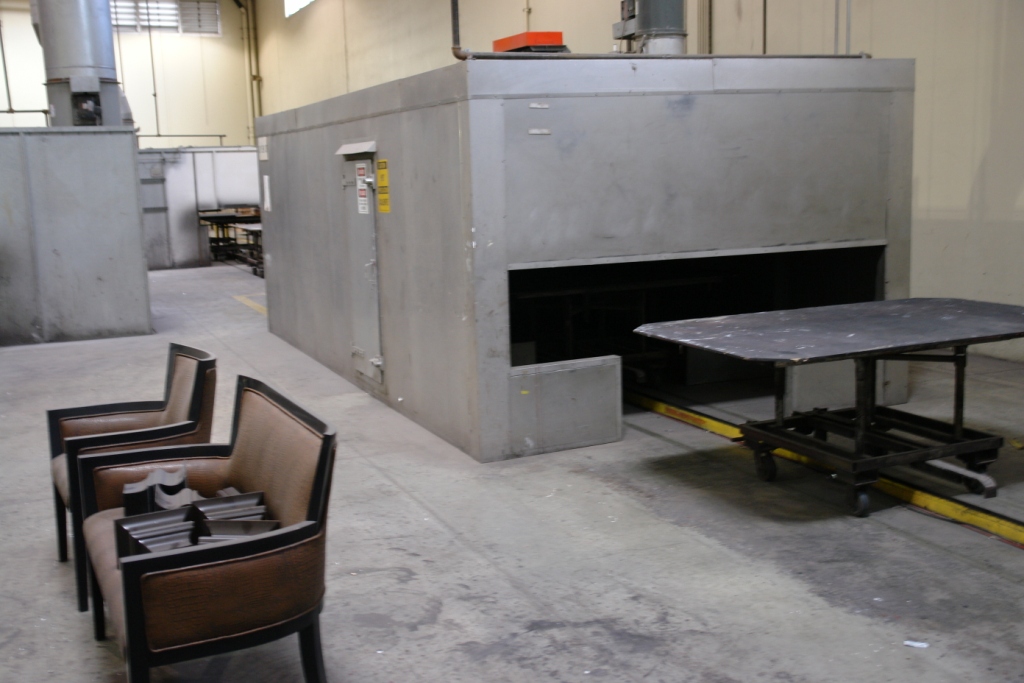

Four (4) Rhodes 19’-0” long x 10’-0” wide x 7’-0” high Cyclone Ovens



Click Photo to make larger


Click Photo to make larger

















Click Photo to make larger















Click Photo to make larger

Click Photo to make larger




Click Photo to make larger
















Click Photo to make larger




Click Photo to make larger
