RSI Used Equipment/Systems Index



ITEM # 9











































































Click on Photos To Enlarge








































Click on Photos To Enlarge









Click on Photos To Enlarge


































































Interested parties note "Item #" and call 1-502-213-3865
or e-mail
artrhodes@rsisystemsinc.net

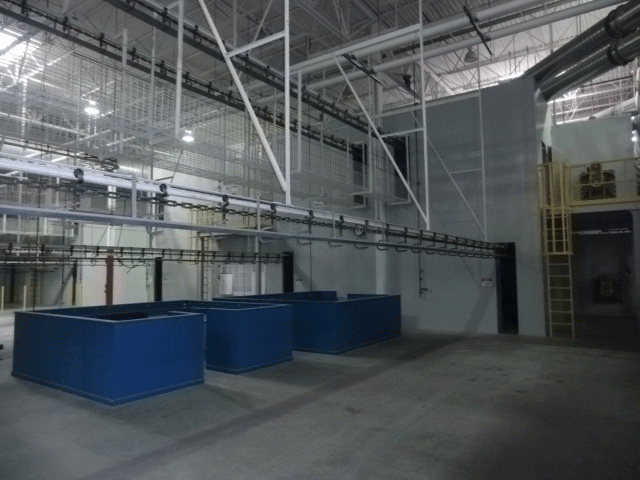

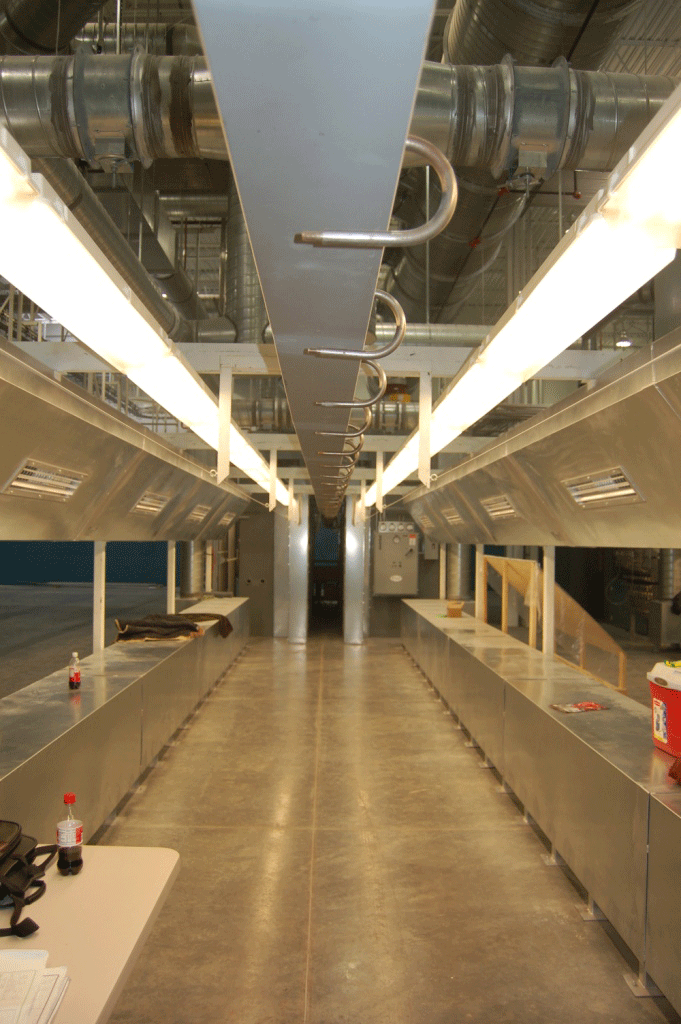

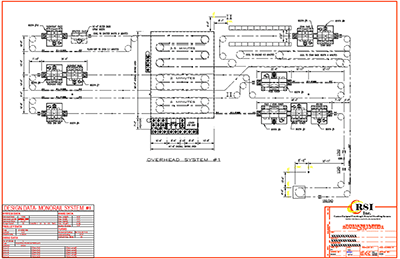

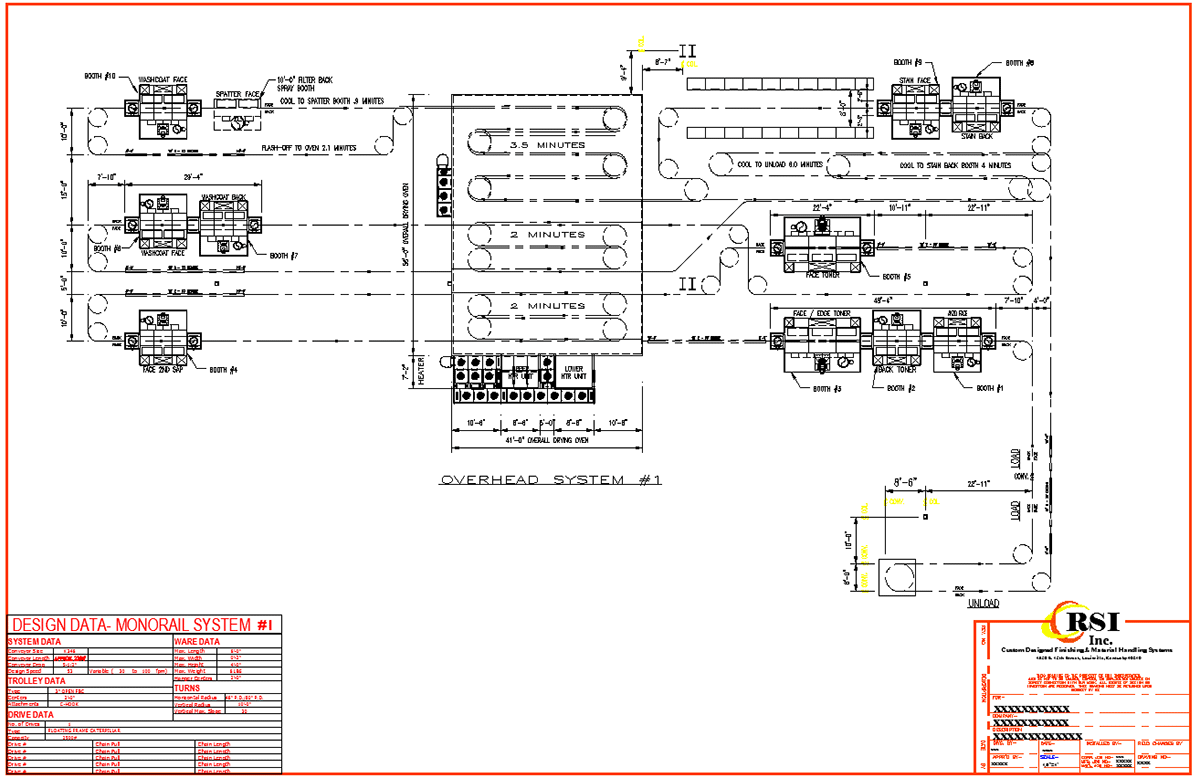

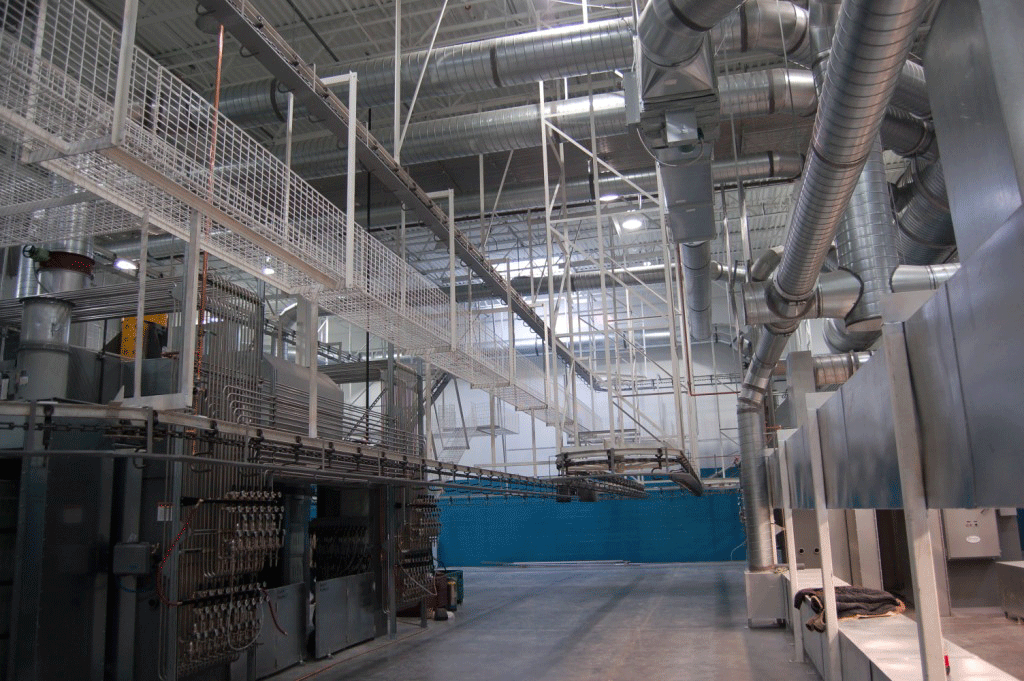

1 (One) USED RSI Complete Overhead Finishing System For Wood Cabinetry.

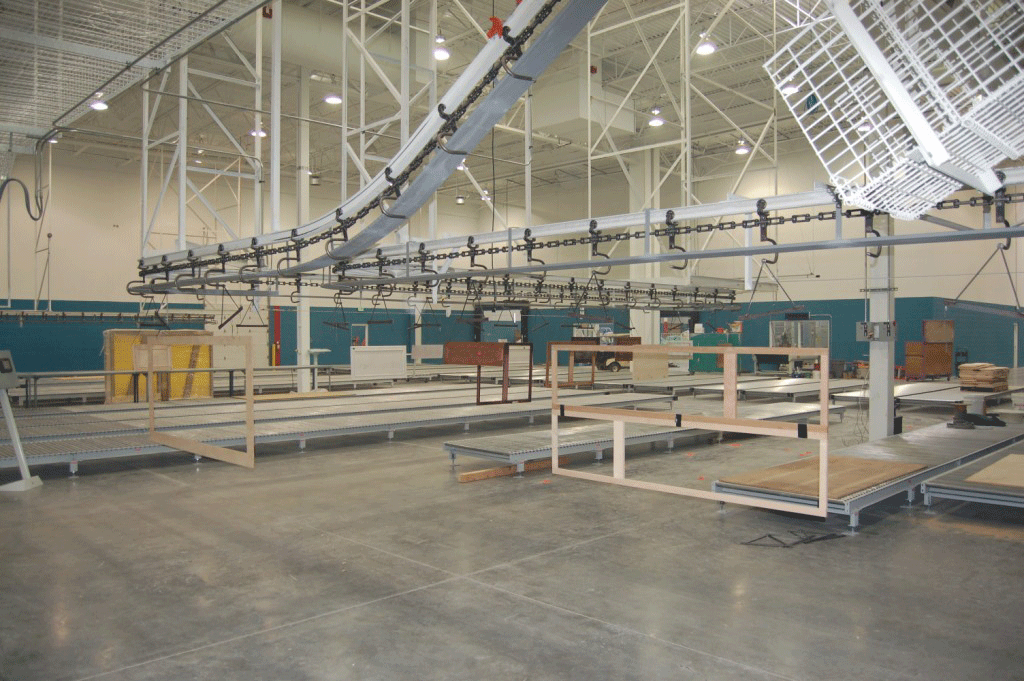

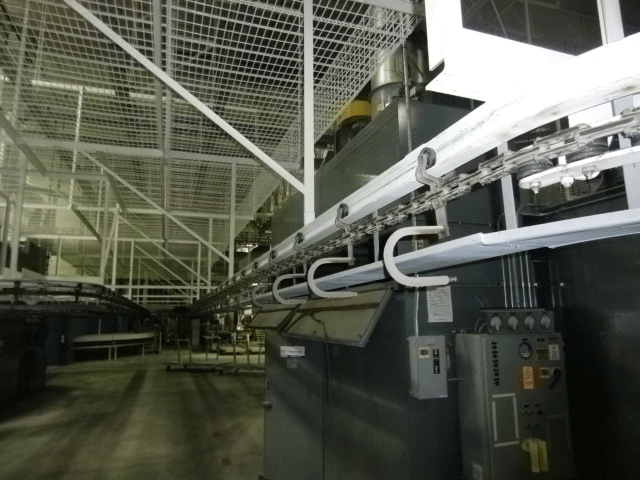

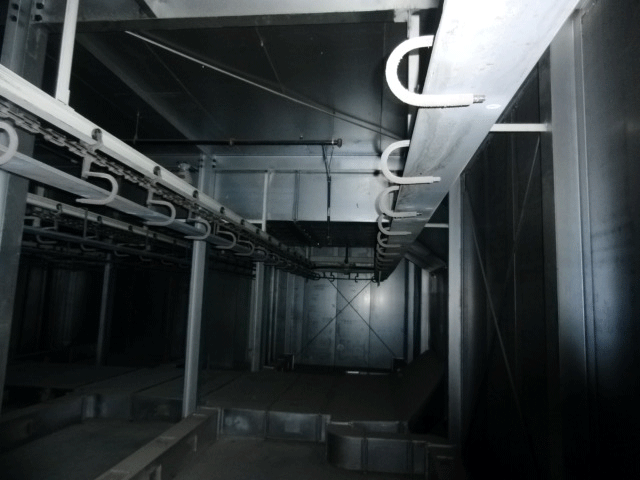

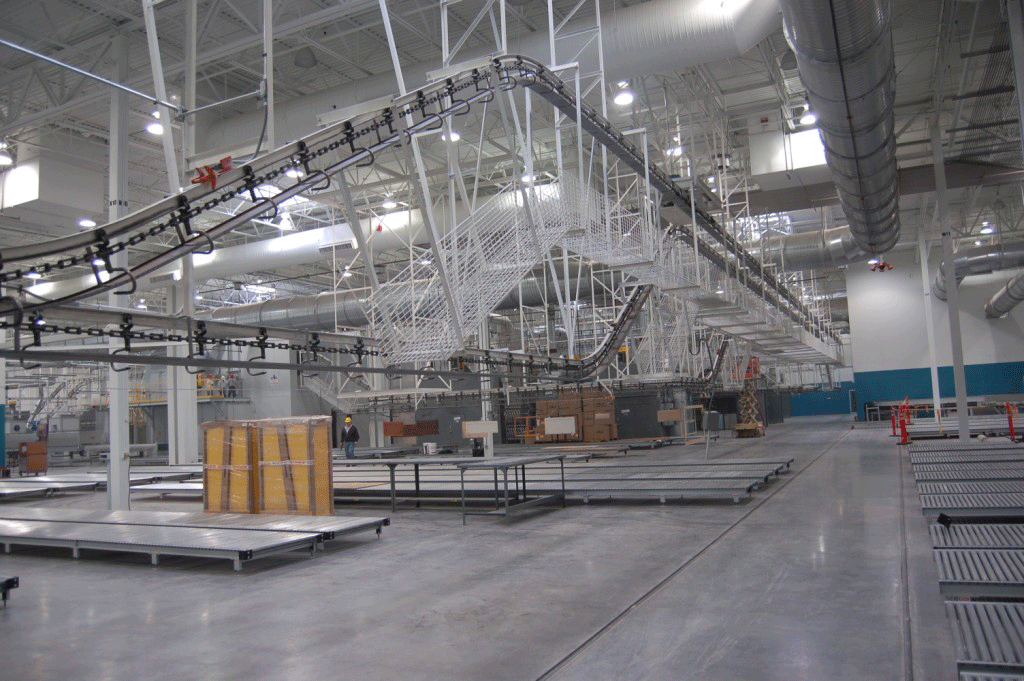

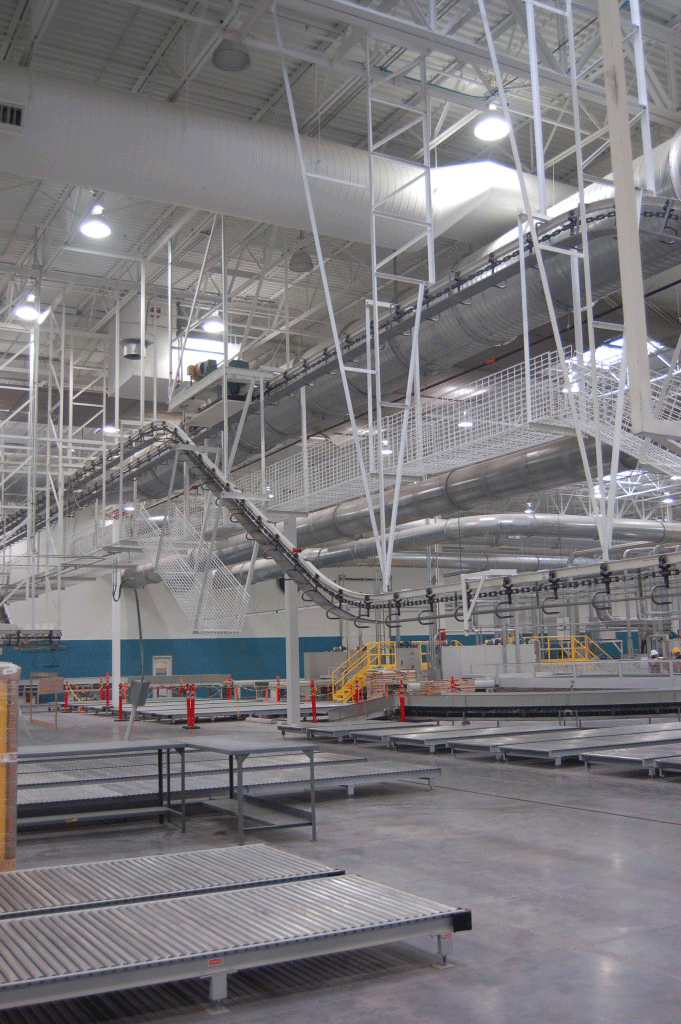

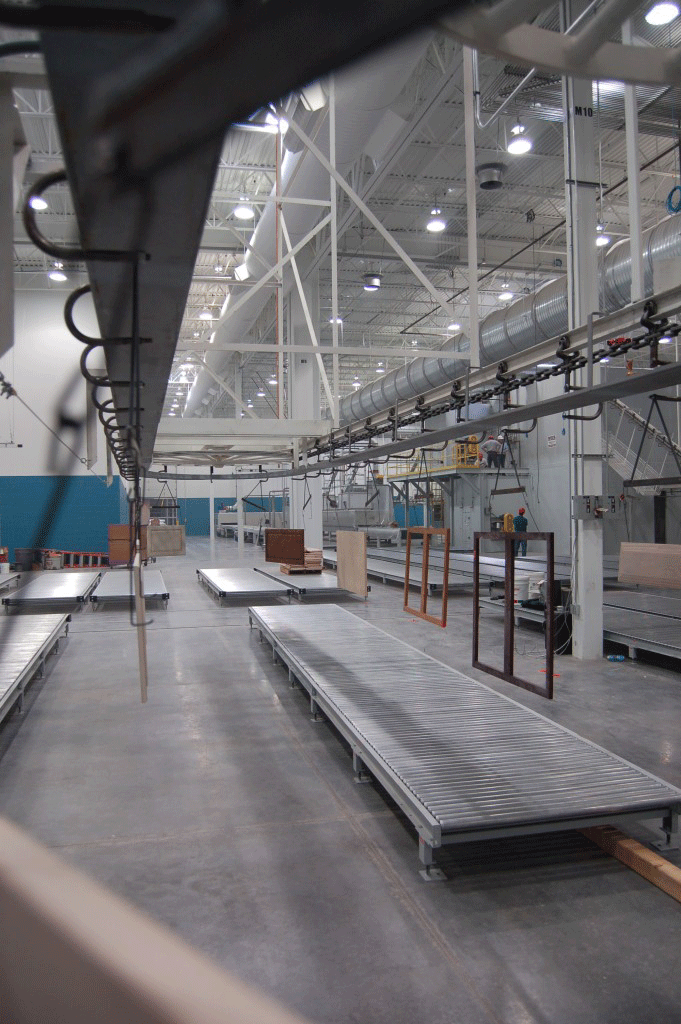

Conveyor:

2,250  Lineal feet of X-348 rivetless conveyor chain

1,125  Pair of 3” FBC trolley assemblies, open/open design, 5-1/2” drop

1,125  Pair of trolley hardware

1,125  ¾” diameter C-hooks

2,250  Lineal feet of aluminized steel sanitary pan

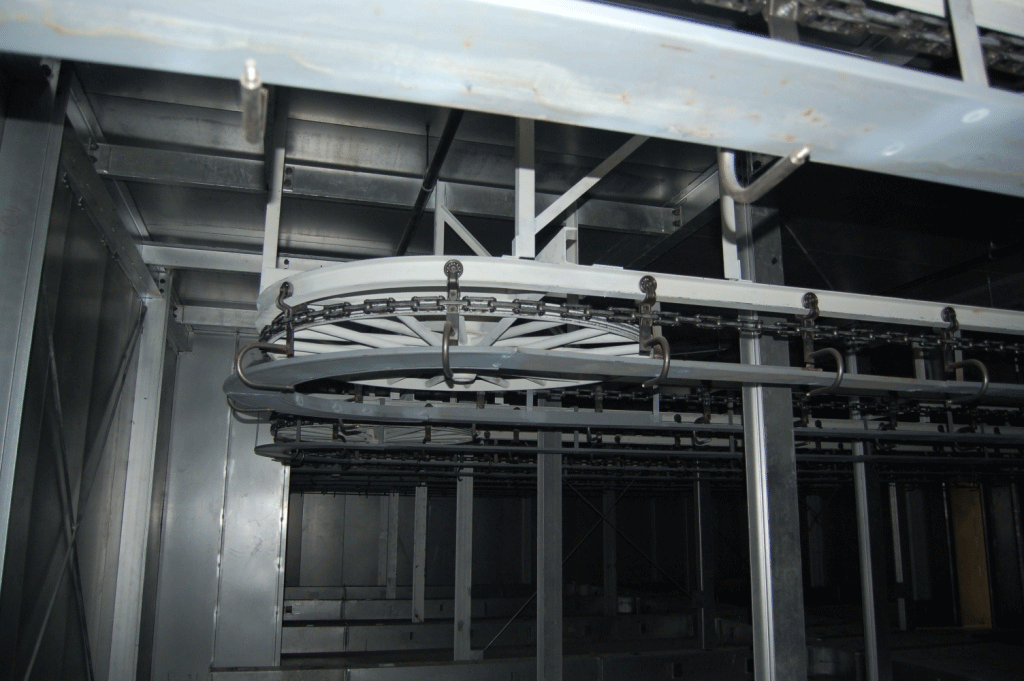

22          4’-0” pitch diameter  x   90 degree roller bearing traction wheels

2          4’-0” pitch diameter  x 180 degree roller bearing traction wheels

12          5’-0” pitch diameter  x 180 degree roller bearing traction wheels

1          6’-0” pitch diameter  x 180 degree roller bearing traction wheel

1             2,500 lb. caterpillar style floating frame drive with 10 HP inverter rated motor for a

3:1 variable speed range.  Speed range of 30 – 90 feet per minute.

1             6’-0” pitch diameter traction wheel type take-up, air operated, 18” travel, with FRL

3          Anti-backup devices

3          Anti-runaway devices w/limit switches

1,870  Lineal feet of 3” I-beam 1045 high carbon conveyor rail

12        10’-0” radius x 30 degree single vertical curves

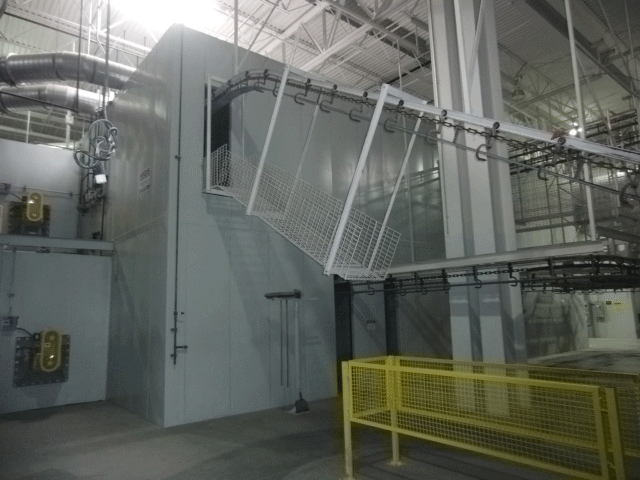

Lot       8’-0” long x 2’-0” wide screen guard w/2’-0” high sides and 2”x2”x3/16” horizontal rail on each side

Lot       Conveyor and screenguard support steel (from ceiling)

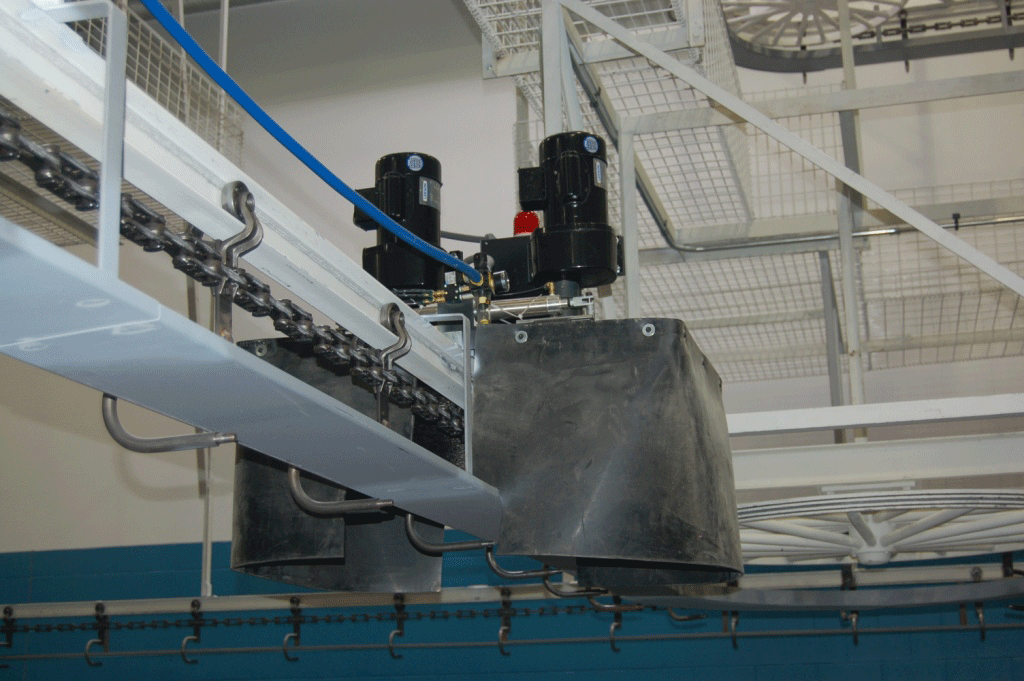

1             Chain Pin & Trolley lubricator with 6 gallon reservoir an 5 gallons of lubricant for initial charge

LINE EQUIPMENT

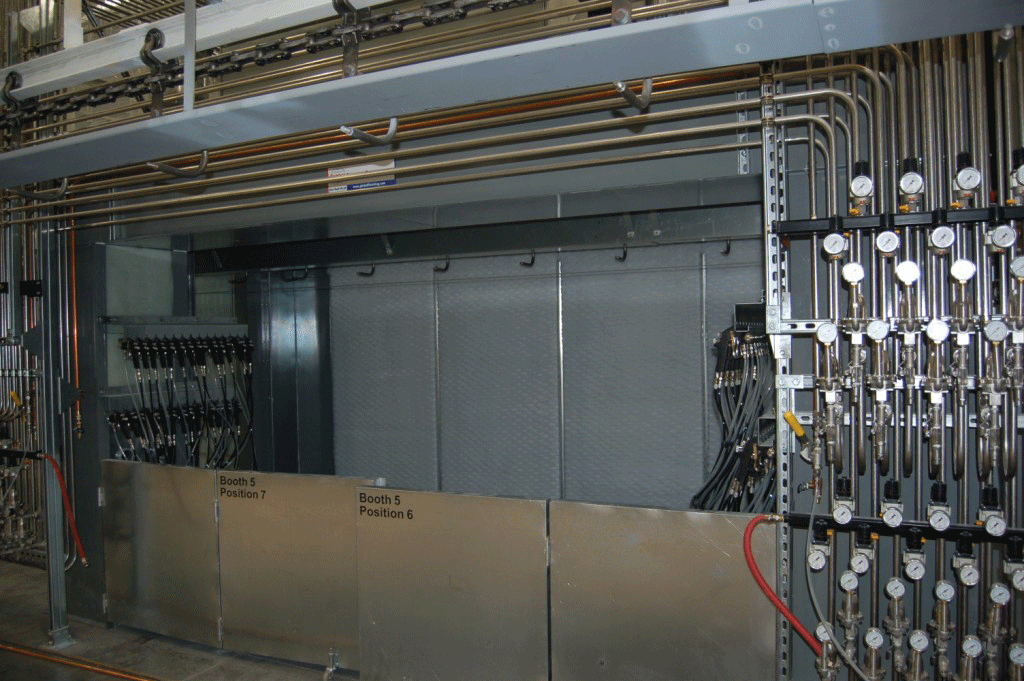

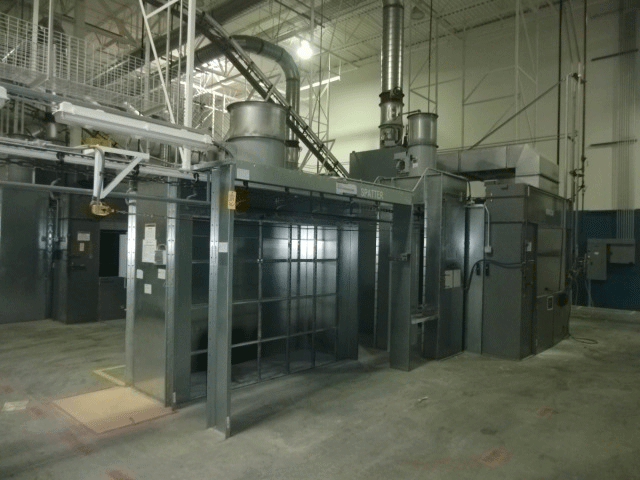

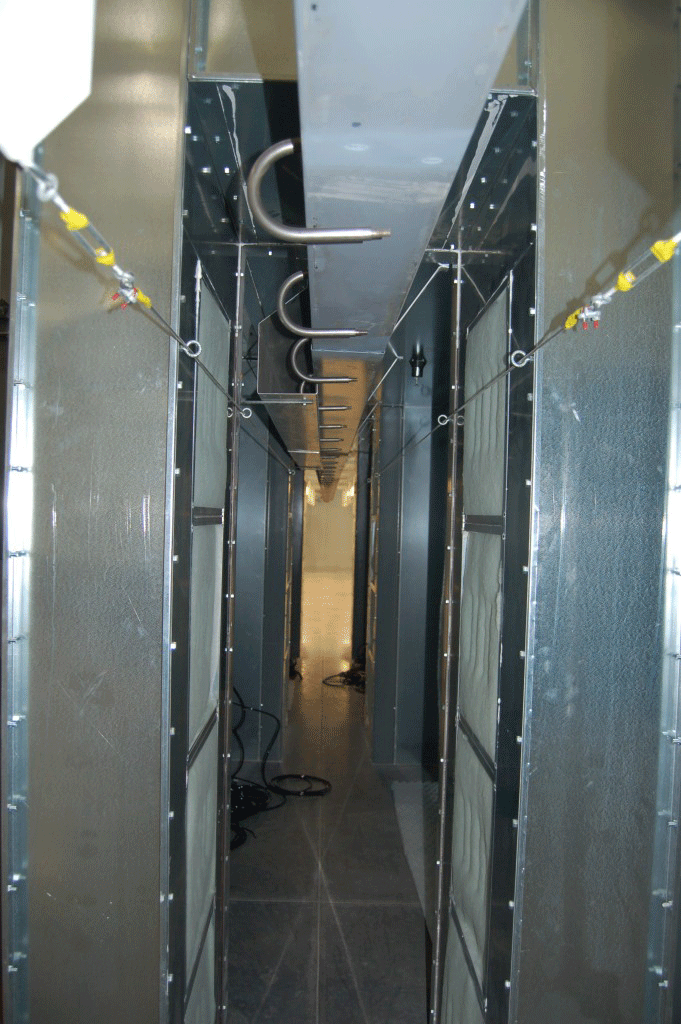

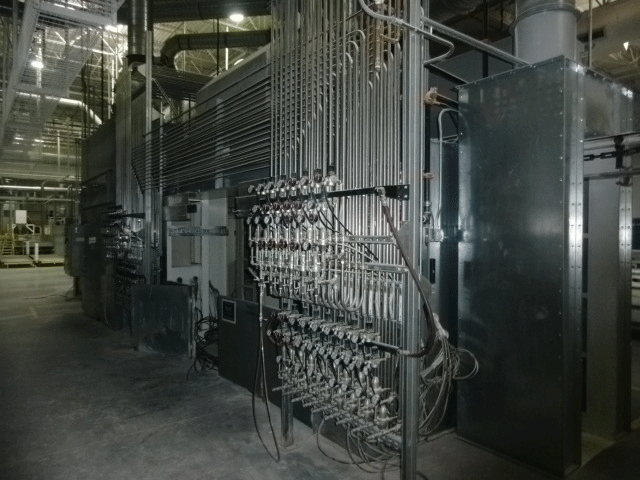

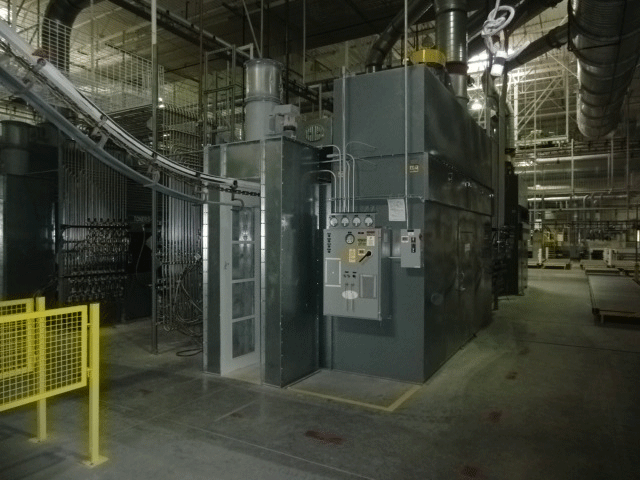

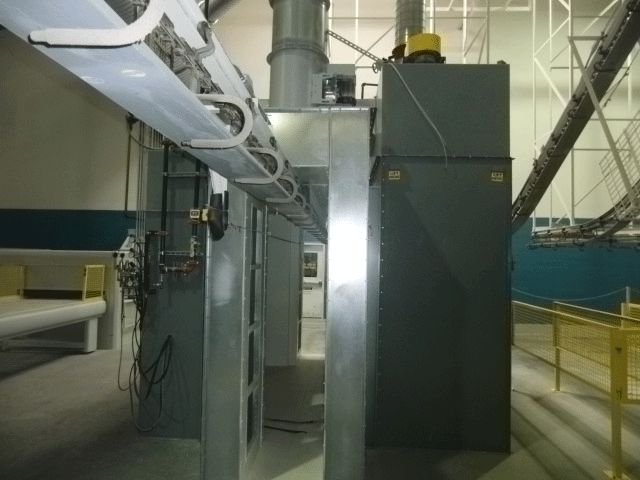

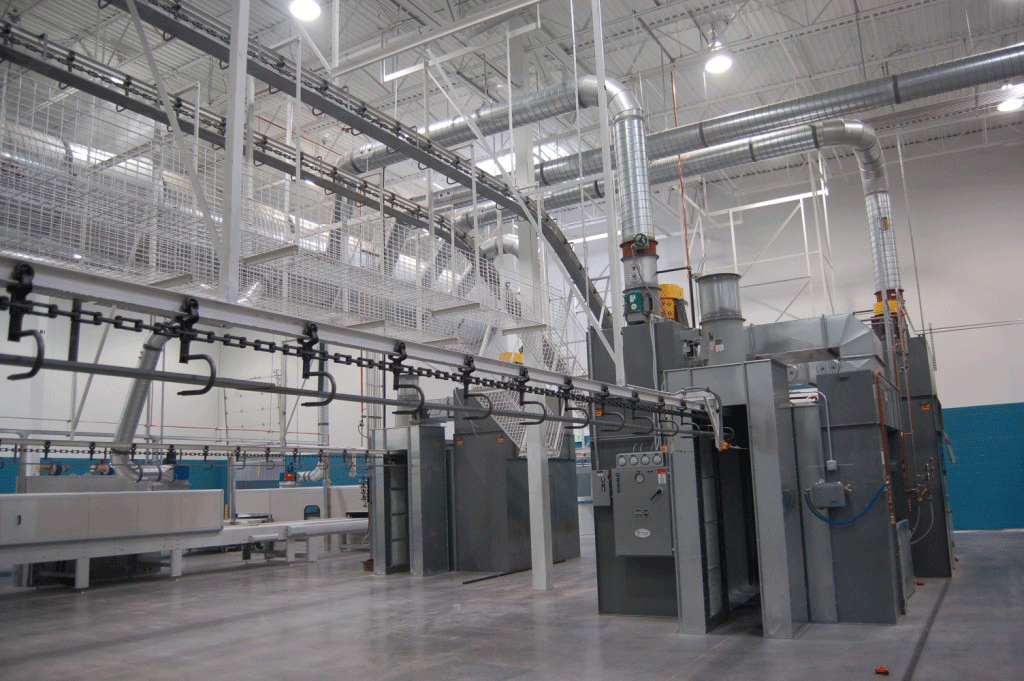

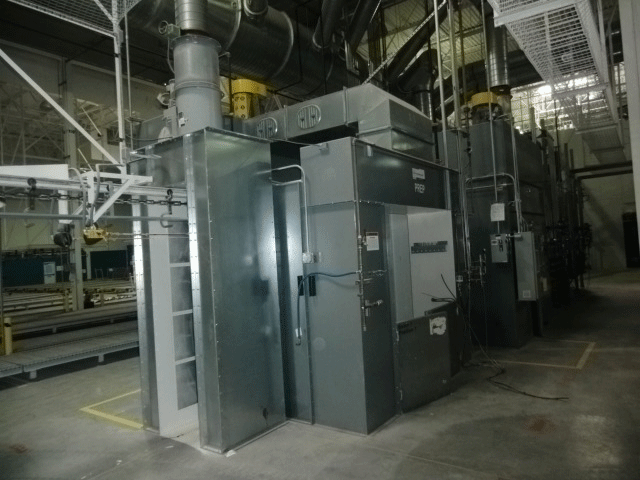

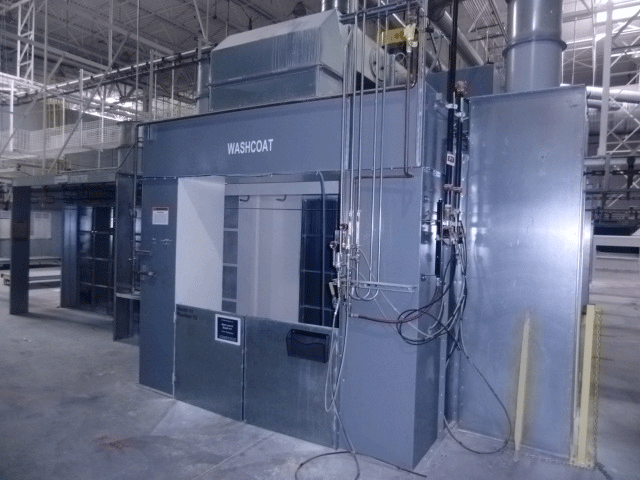

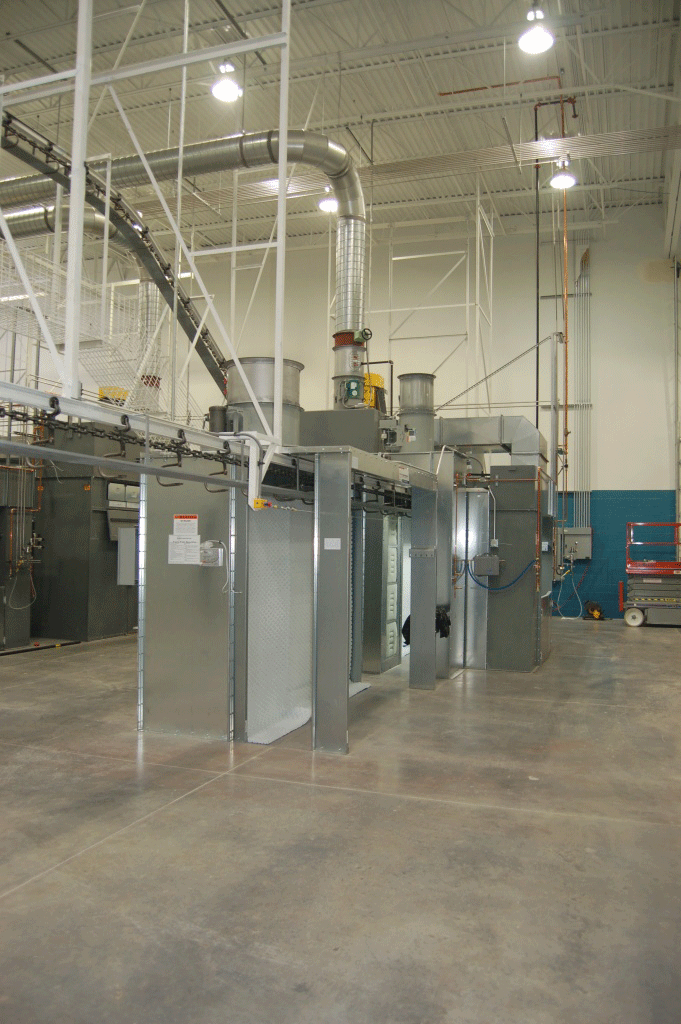

8          10’-0” Re-circulating Spray Booths

1             16’-0” Re-circulating Spray Booths

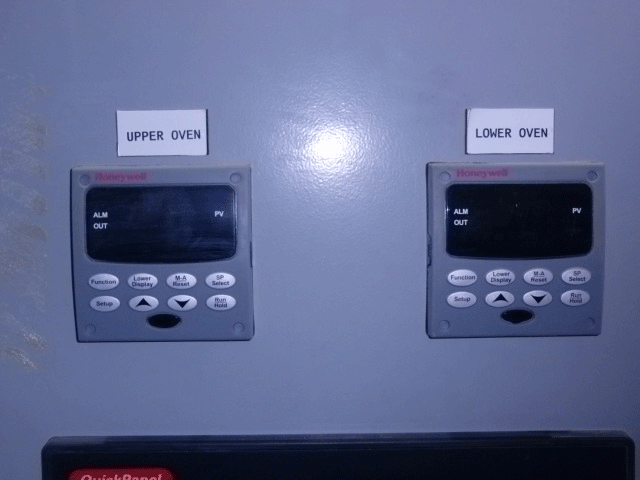

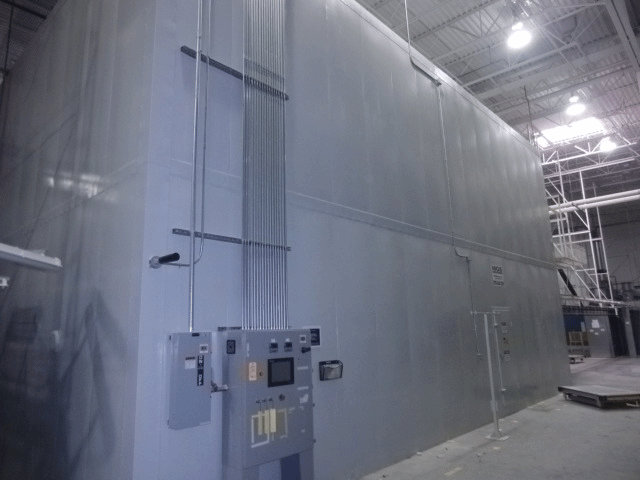

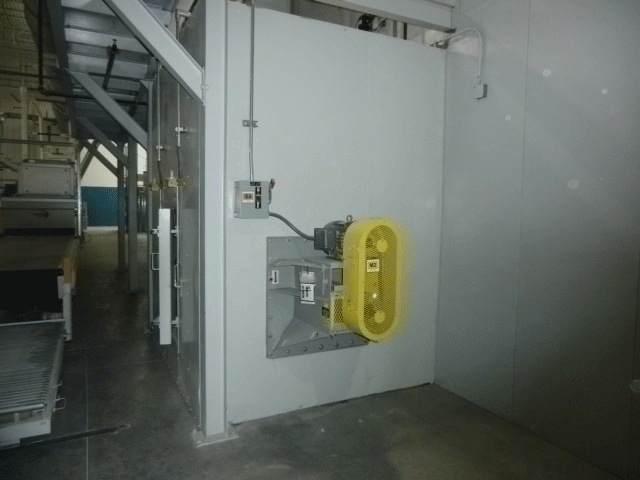

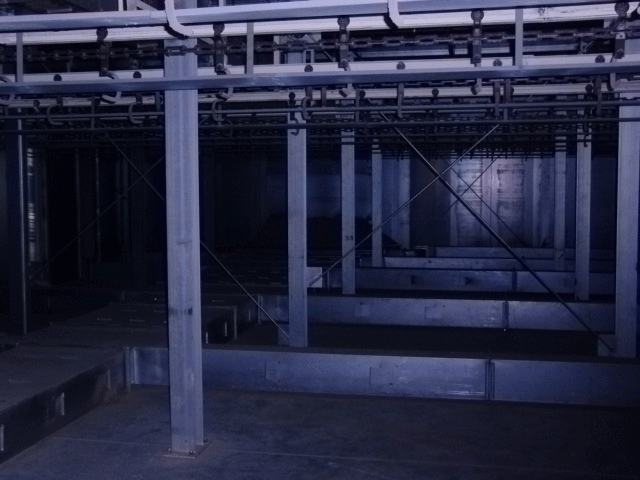

1          Two (2) Level Gas-Fired Drying Oven approximately 41’-0” long x 56’-0” wide x 21’-0” high
