Electrocoating provides a durable and lasting coating. The versatility of electrocoating is endless because it can be used both as a top coat or primer. Electrocoating is know for its ability to coat assembled products and complex parts using electrical current to deposit paint.
RSI offers complete systems that are ready to install or will build a system especially for your needs. We offer new, used or reconditioned finishing systems to fit your budget. Contact us with any questions.

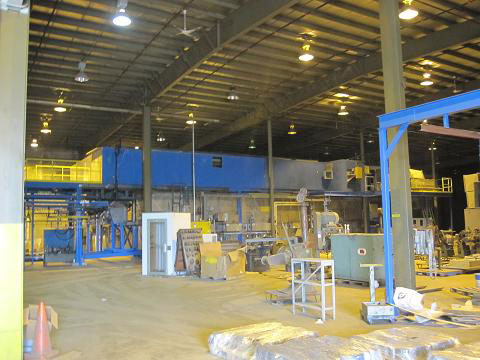

EM-108: 13-STAGE TTX SST E-COAT SYSTEM
Stage
Length
Time
Temp
Tank
Pump
GPM
Risers
Noz./Ed.

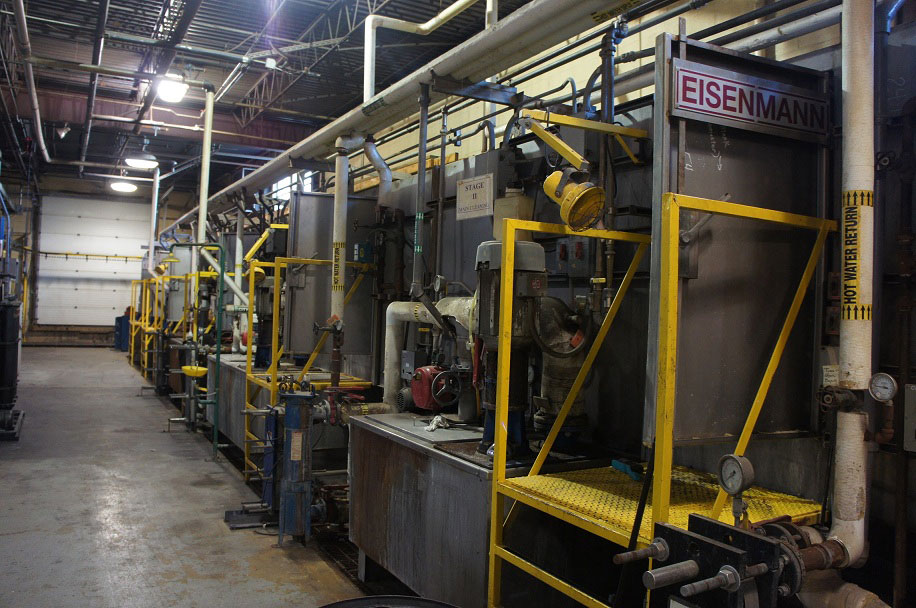

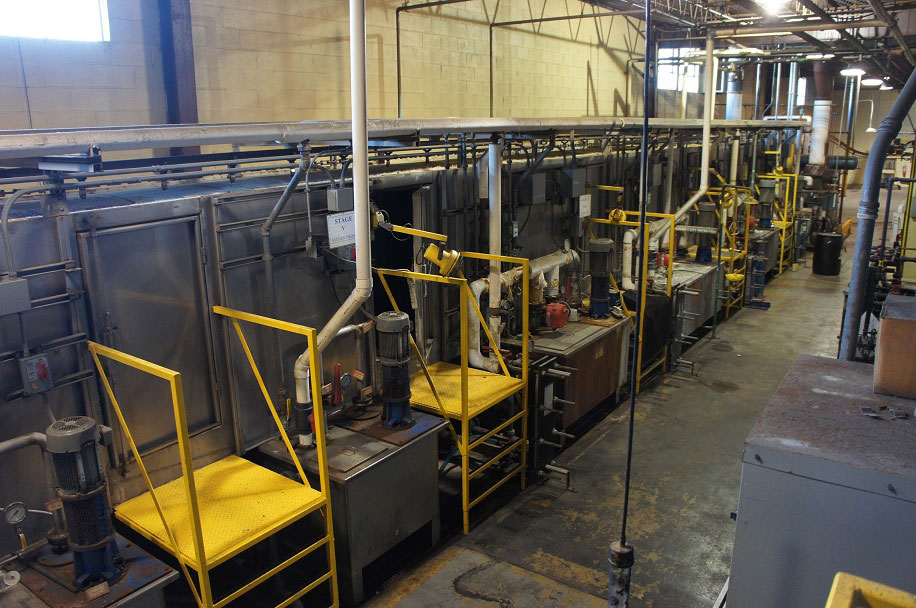

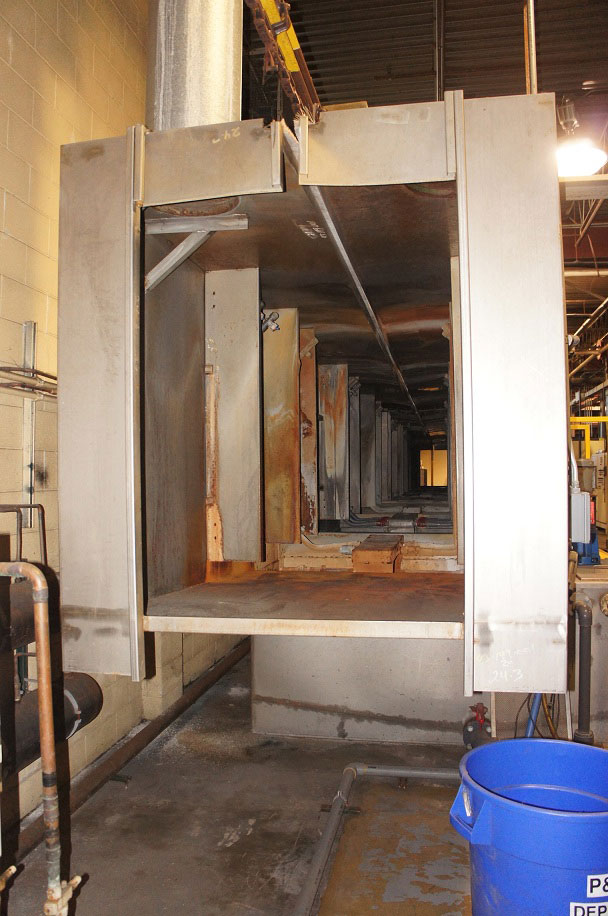

Pretreatment
83’ Long
Entrance
5’-6”
Drains
7’-4”
Exit:
8’-10”
S1: Pre-Clean
2’
30 s
165°
467
7.5
113
3 sets
30 N
S2: Alkaline Clean
8’
120 s
165°
719
15
340
9 sets
90 N
S3: Rinse
5’
75 s
135°
957
7.5
195
6 sets
60 N
S4: Iron Phosphate
5’
75 s
150°
719
7.5
195
6 sets
60 N
S5: Rinse
2’
30 s
Amb.
467
3
90
4 sets
40 N
S6: Seal
2’
30 s
Amb.
467
3
90
4 sets
40 N
S7: DI Rinse
1’
15 s
Amb.
467
1.5
60
2 sets
20 N

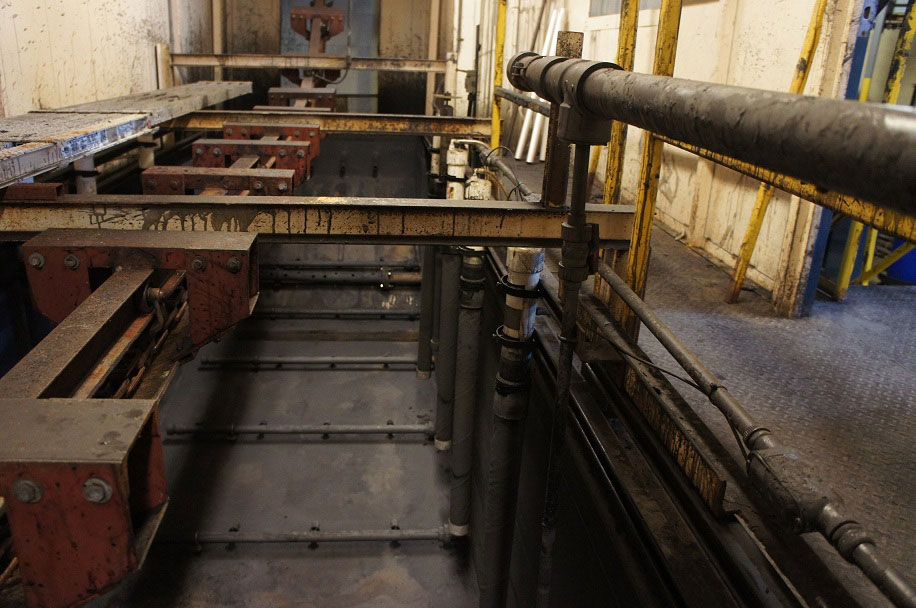

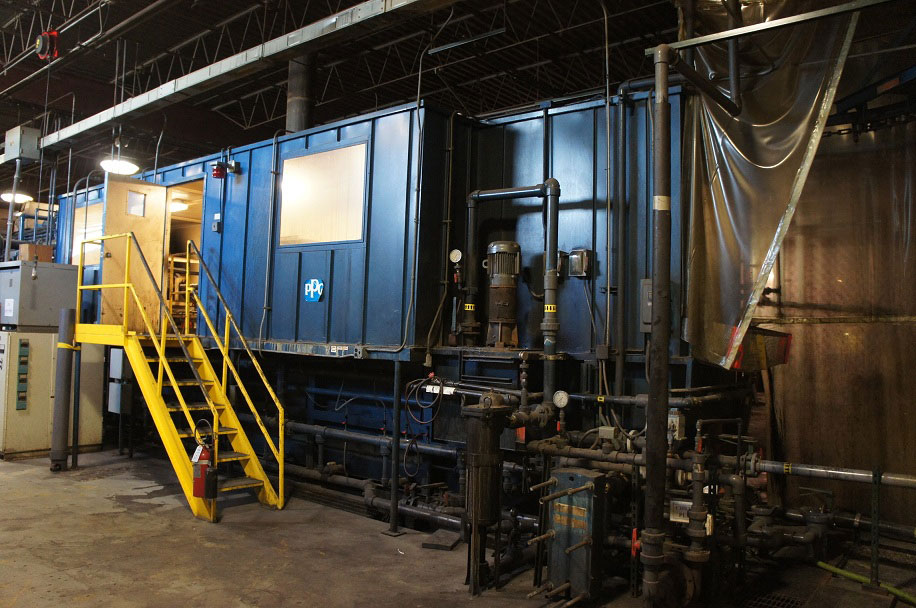

E-Coat
36’ Long
Entrance
6’
Exit:
6’
E-Coat (IMM)
24’ Flat
360 s
80-90°
5,000
20
500
9 sets
36 E

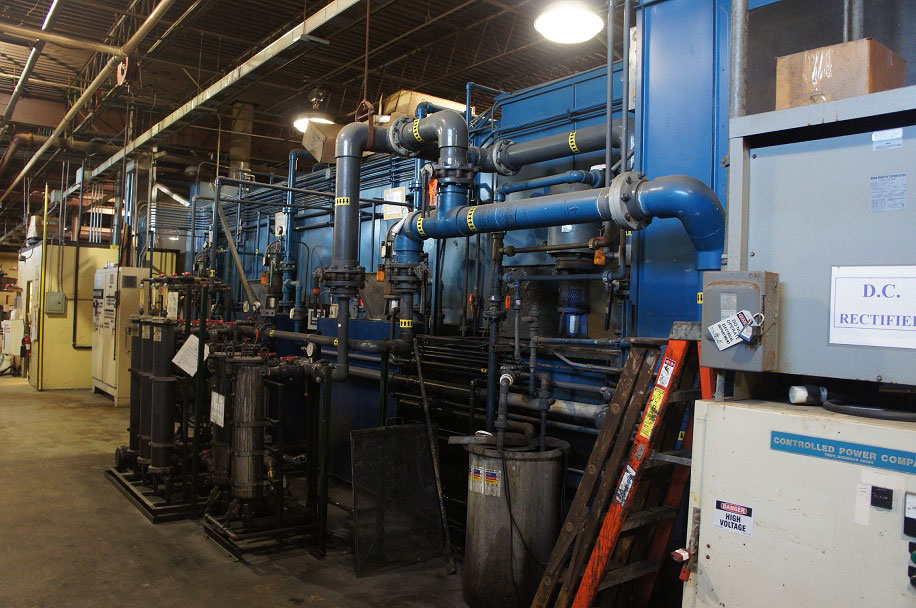

Post Rinses
30’ Long
Entrance
3’
Drains
6’
Exit:
6’
Post Rinse #1
3’
45 s
Amb.
1,500
5
120
4 sets
32 N
Post Rinse #2
3’
45 s
Amb.
1,500
5
120
4 sets
32 N

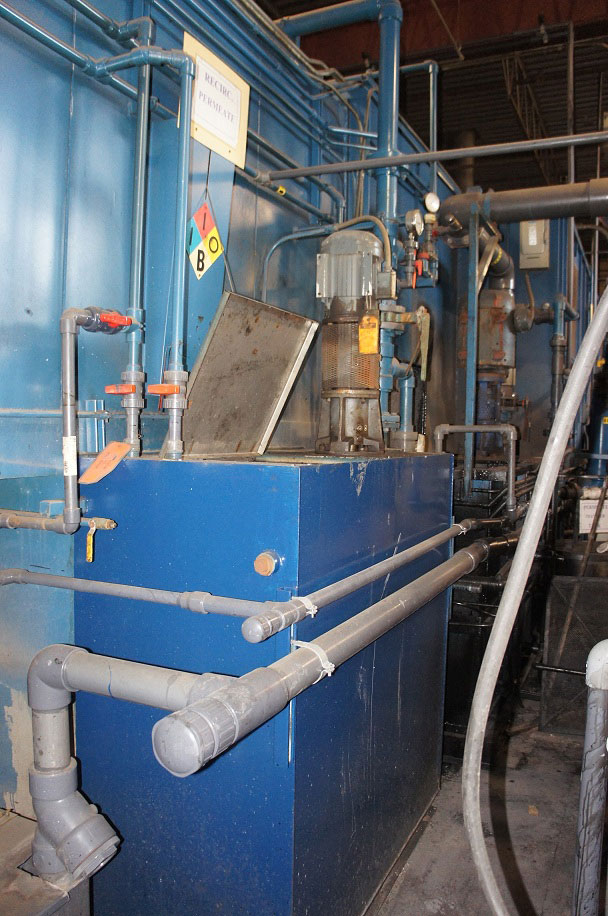

Post Rinse #3
3’
45 s
Amb.
1,500
5
120
4 sets
32 N
System Design
Mfg.: Eisenmann/Finishing Technologies Part Opening: 3’-3” W x 4’-1” H Maximum Product: 2’-6” W x 3’-1” H x 6’ L Design Line Speed 4 FPM (Can be increased)

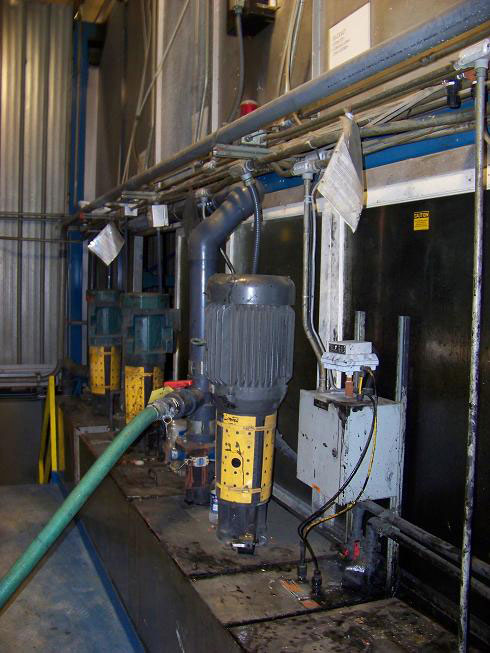

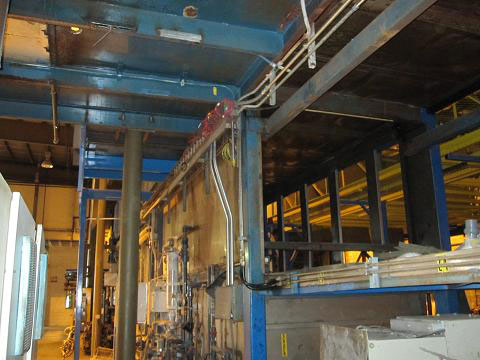

Carver Pumps are Stainless Steel Fitted and Wetted

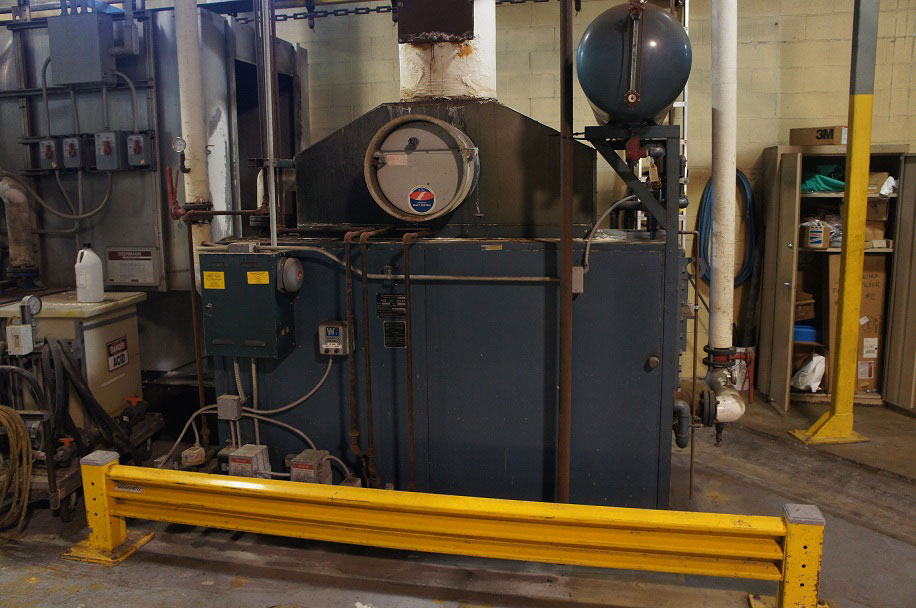

Rite Boiler – 2,750,000 MBTU’s
Stainless Steel Heat Exchangers with Clean in Place Cart
Heated Tanks are Insulated
Bag Filtration on Stages 1, 2 and E-Coat
Metering Equipment

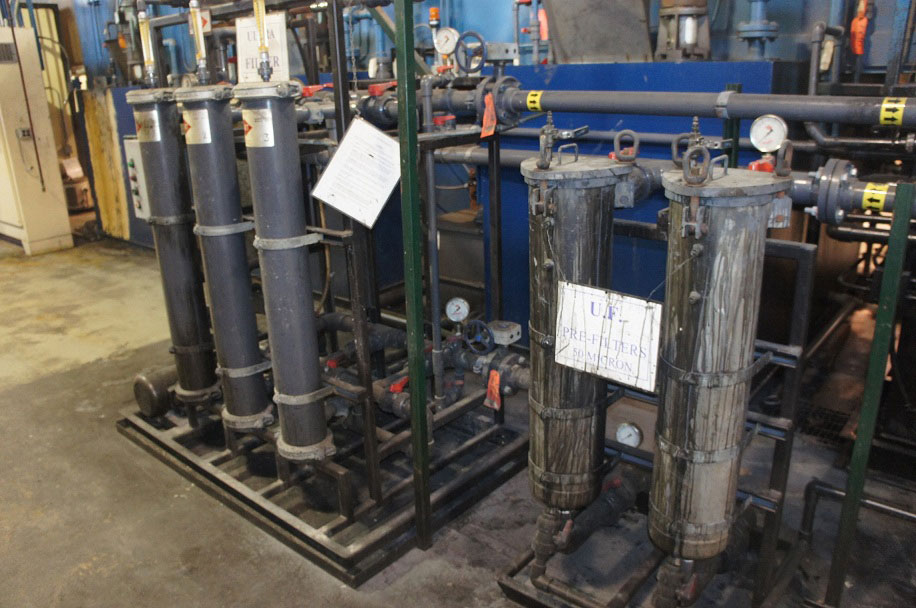

Ultra-Filter with 50 Micron Pre-filter Units

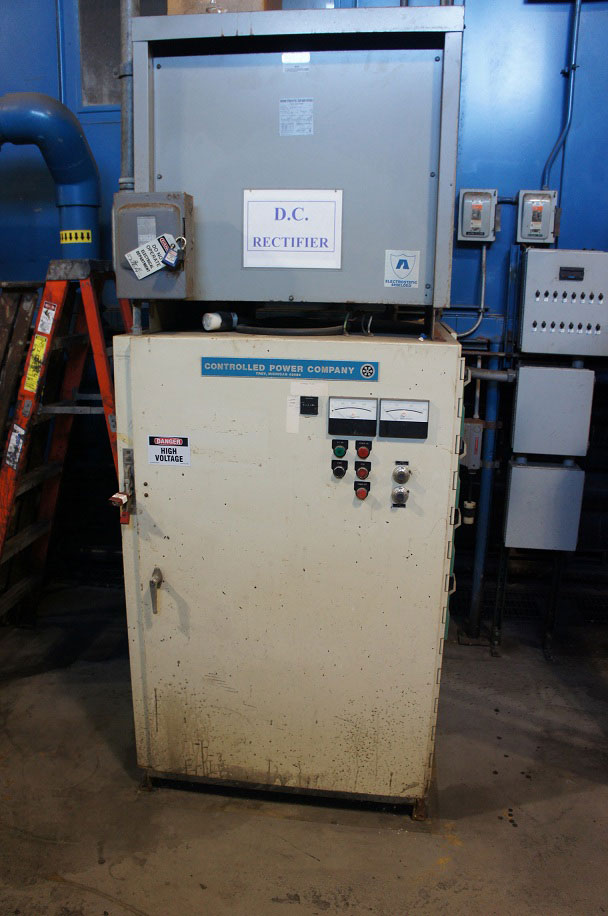

Rectifier: 400 Volt/300 Amp Controlled Power Company
Trane HRDC40 Chiller

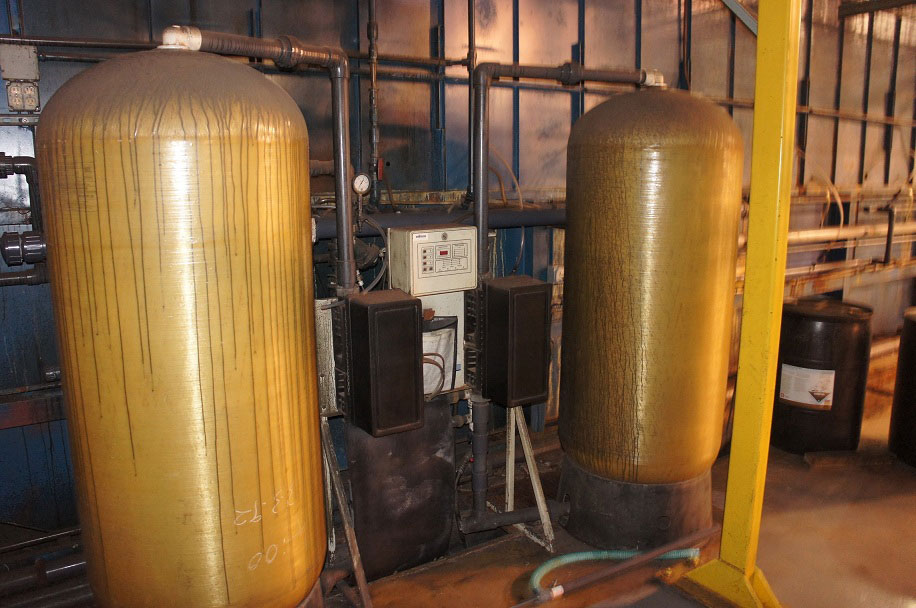

D.I. Water System

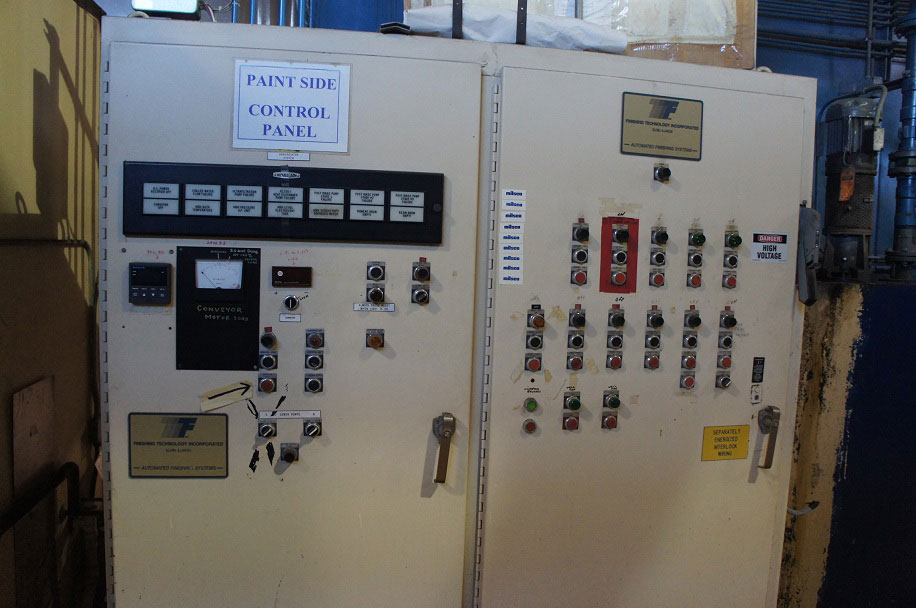

PLC and Pushbutton Control Systems

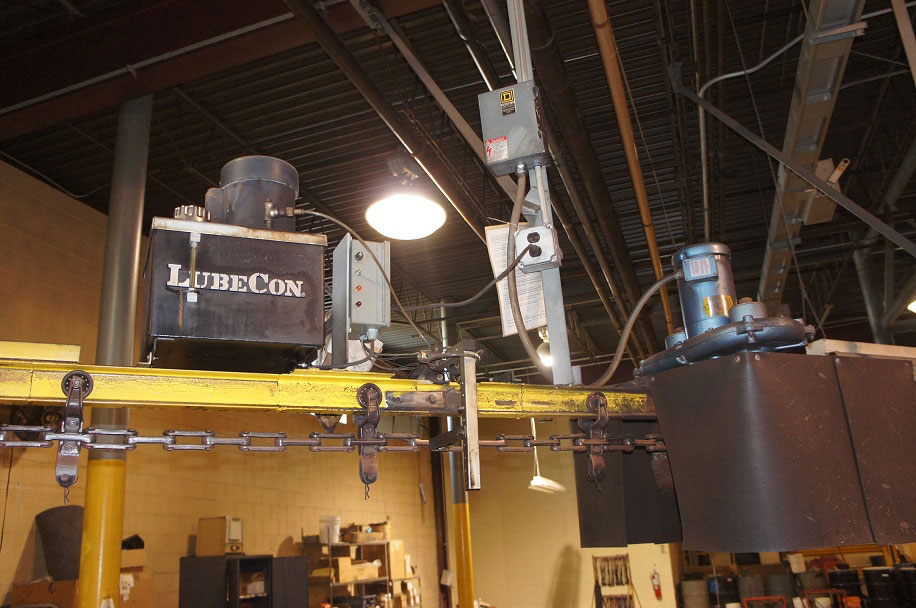

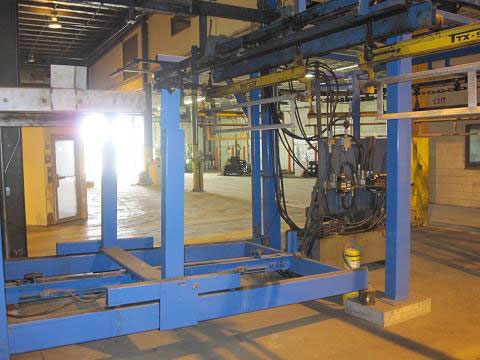

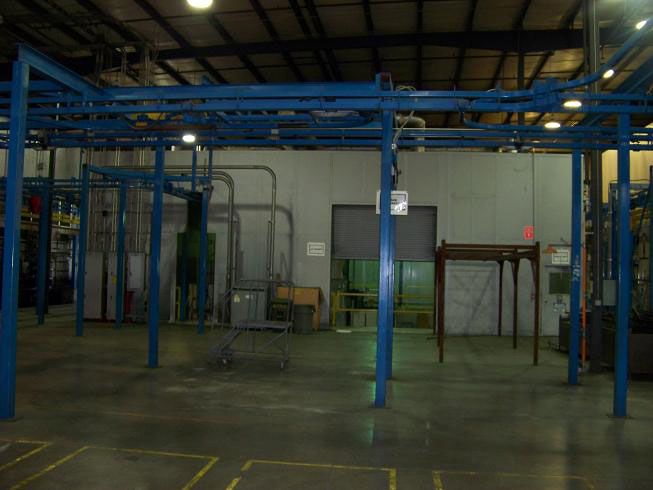

Conveyor System
X348, 3” I-Beam
Excellent Condition with many newer components
X458, 4” Upgrades available

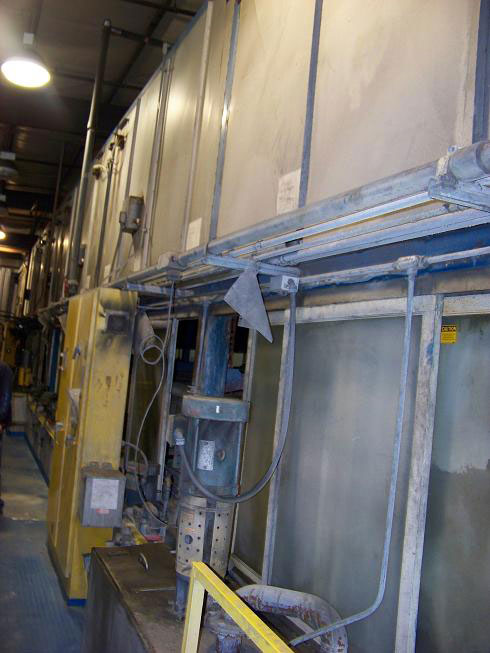

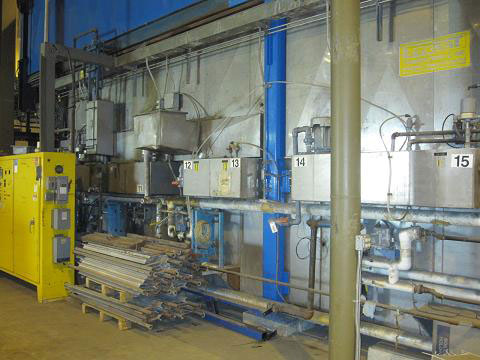

Cure Oven
40-Minute Cure Oven
6” Oven Panels
Eclipse Burner with Gas Trane
36’ wide x 42’ long x 10’ high
Graphalloy Oven Wheel Turns
System is in excellent condition and is available immediately. The line was decommissioned for possible future re-start and is currently under power. Removal and installation are available.

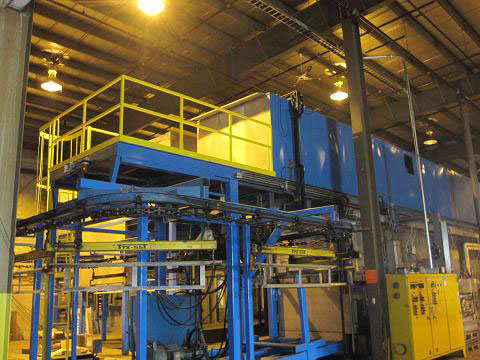

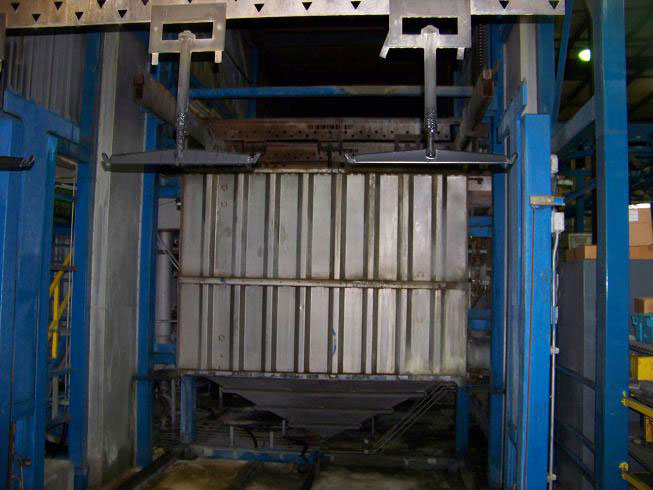

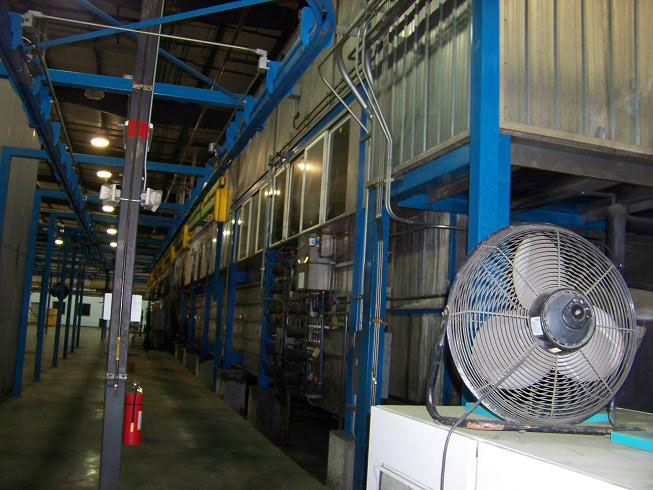

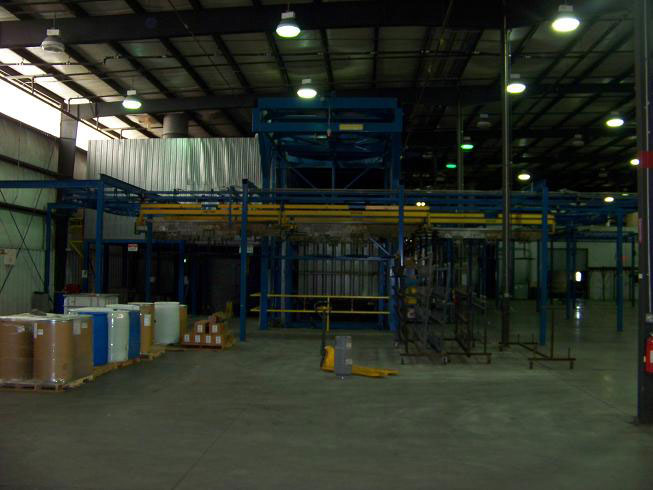

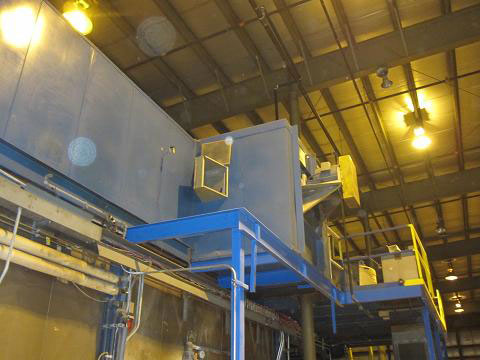

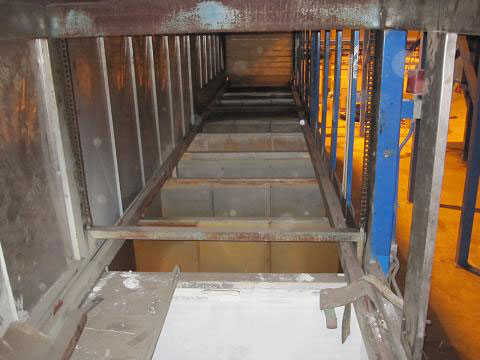

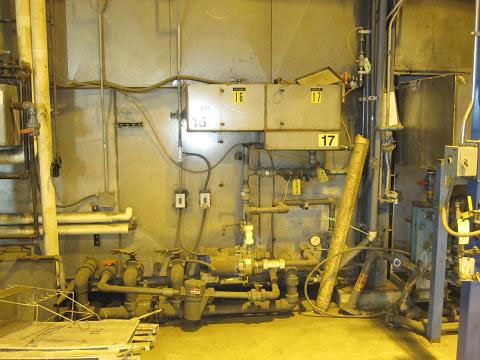

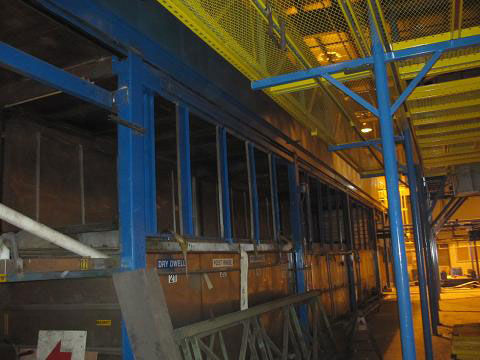

SST TTX with Overhead Oven, Automatic Transfer to Power & Free Conveyor 9-Stage S.S. Pretreatment, E-Coat, & 3-Stage Post Rinse 42 Min. Cure Oven & 12 Minute Cool Down
Deign Data: Ware Package Size: 5’ wide x 3’- 6” high x 2’- 6” long Max Load Weight: 2000 lbs Cycle Time: 3.0 Minutes Immersion Time: 2.0 Minutes Transfer Time: 1.0 Minute Load bars per hour (cycle): 20 each, 40,000 lbs Paint Efficiency: 2.5 A-MIN / Sq. Ft. – Mil.
All Controls, Rectifiers, Chillers, etc units included Waste Treatment System available Excellent Condition Removal & Installation Available Call for more info, pictures, and pricing
